Added to basket

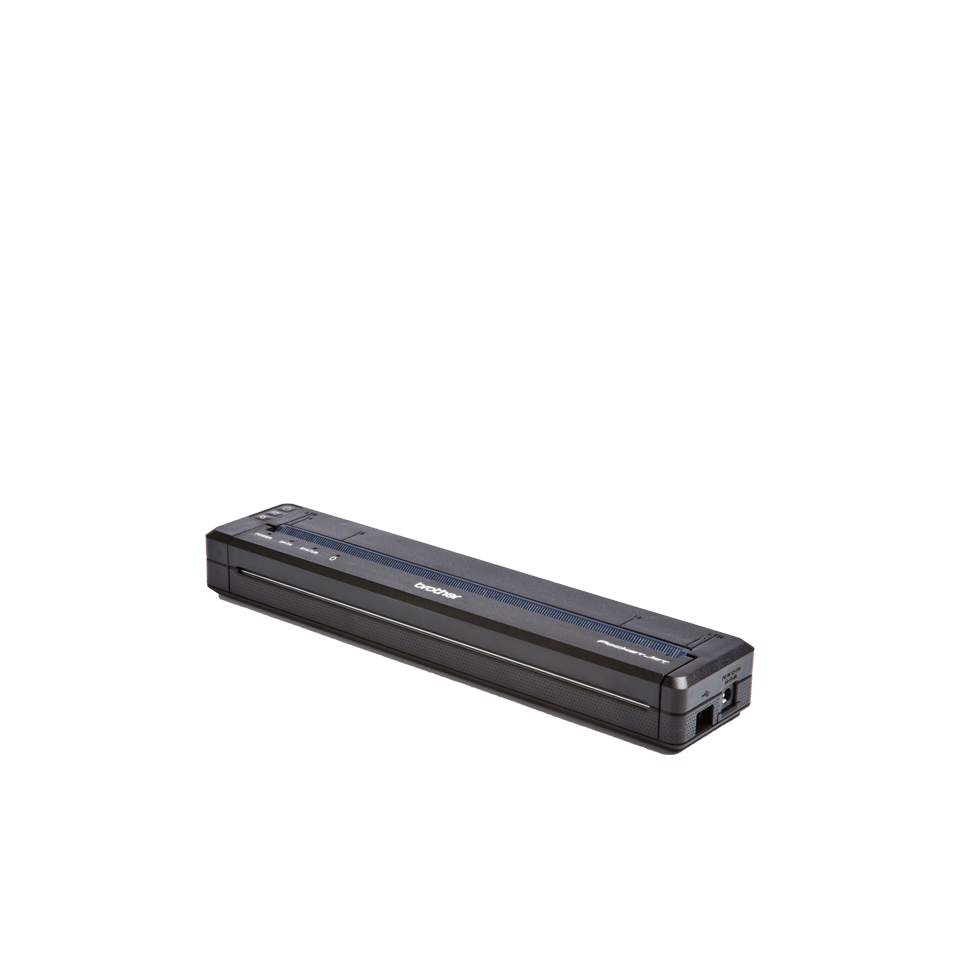

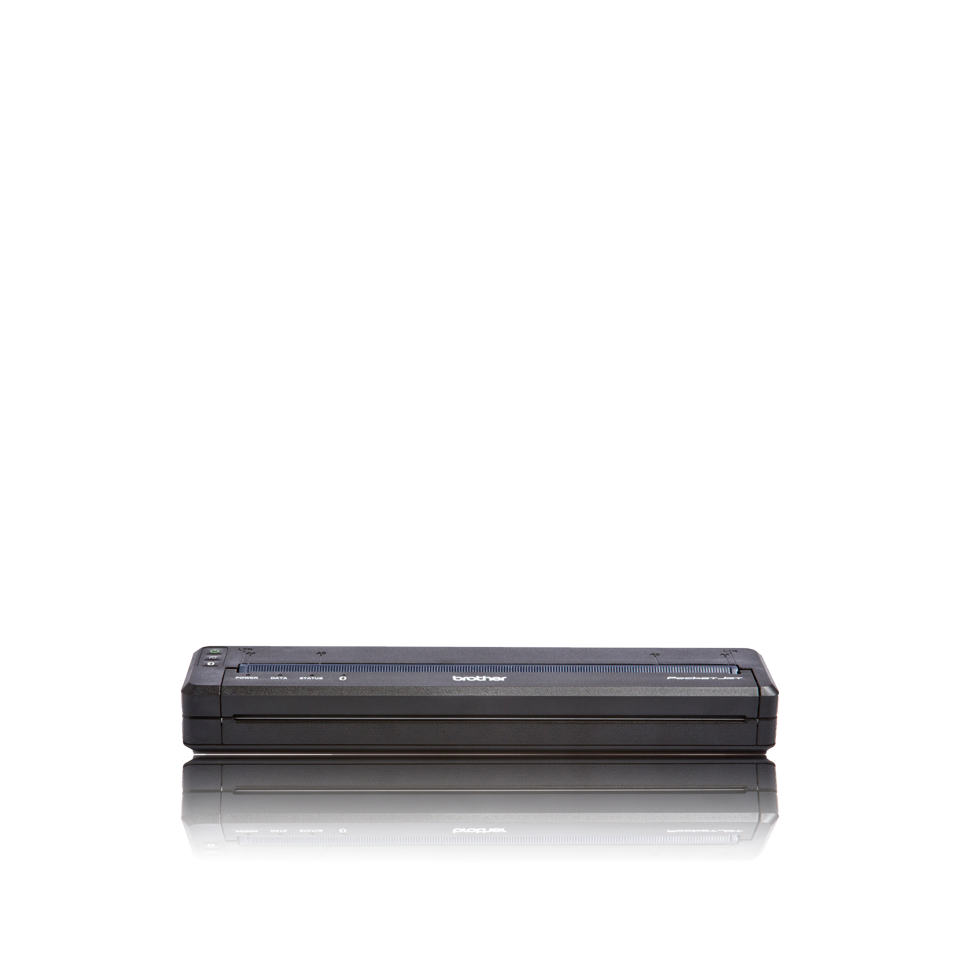

PJ-763

A4 mobile printer with Bluetooth connectivity

Built-in Bluetooth and USB connectivity

High-resolution 300dpi thermal print technology

Up to 8ppm print speed

Product Overview

PJ763

Android, Windows, Mac, Linux and Citrix support

Optional high-capacity Li-ion battery for printing away from power sources

Customise your print solution with vehicle mounting kit, chargers and protective cases

Key Features

  • Built-in Bluetooth and USB connectivity
  • High-resolution 300dpi thermal print technology
  • Up to 8ppm print speed
  • Android, Windows, Mac, Linux and Citrix support
  • Optional high-capacity Li-ion battery for printing away from power sources
  • Customise your print solution with vehicle mounting kit, chargers and protective cases

About this product:

Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.

The PJ-763 with built-in Bluetooth and USB connectivity offers a mobile A4 print solution compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.

Thermal print technology at 300dpi produces crisp text at a print speed of up to 8 pages per minute.

Compatible with a wide range of mobile and desktop operating systems, the PJ-763 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available.

Specification Details

General

Printer Type Mono
Barcode symbologies Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet. 2D:PDF417/MicroPDF417, DataMatrix, Maxicode, QR Code/Micro QR Code, Aztec
Max paper size A4
Memory RAM: 32MB, Flash: 6MB

Connectivity

Bluetooth Ver 2.1 EDR
Bluetooth profiles SPP, BIP, OPP and HRCP
USB interface Ver.2.0 (Full Speed). Peripheral plug type: Mini-B

Mobile Connectivity

Supported Android SDK (Android ver 2.3 or later using Bluetooth, ver 3.1 or later using USB connection)

Dimensions & weights

Dimensions 255(W) x 55(D) x 30(H) mm
Wight 480 g

In the Box

Contents PJ-763 mobile printer, USB Cable, Printhead Cleaning Sheet, Documentation

Media specifications

Weights Min: 105mm x 25.4mm, Max: 216mm x 5.49metres

Operating systems

Supported Windows - Vista/7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2, Mac OSX - v10.8/10.9/10.10, Linux - Redhat, Debian

Printing

A4 standard print speed 8
Resolution 300x300dpi
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold
Emulations ESC/P-P, ESC/P_B, Raster_P, P-touch Template
Outline/Vector fonts Helsinki, Brussels, Letter Gothic

Solutions

Supported iPrint & Scan, P-touch Editor, P-touch Transfer Manager, Citrix Xen App/Xen Desktop/Citrix Ready Certification (Windows only)

Warranty

Warranty 1 year return to base
