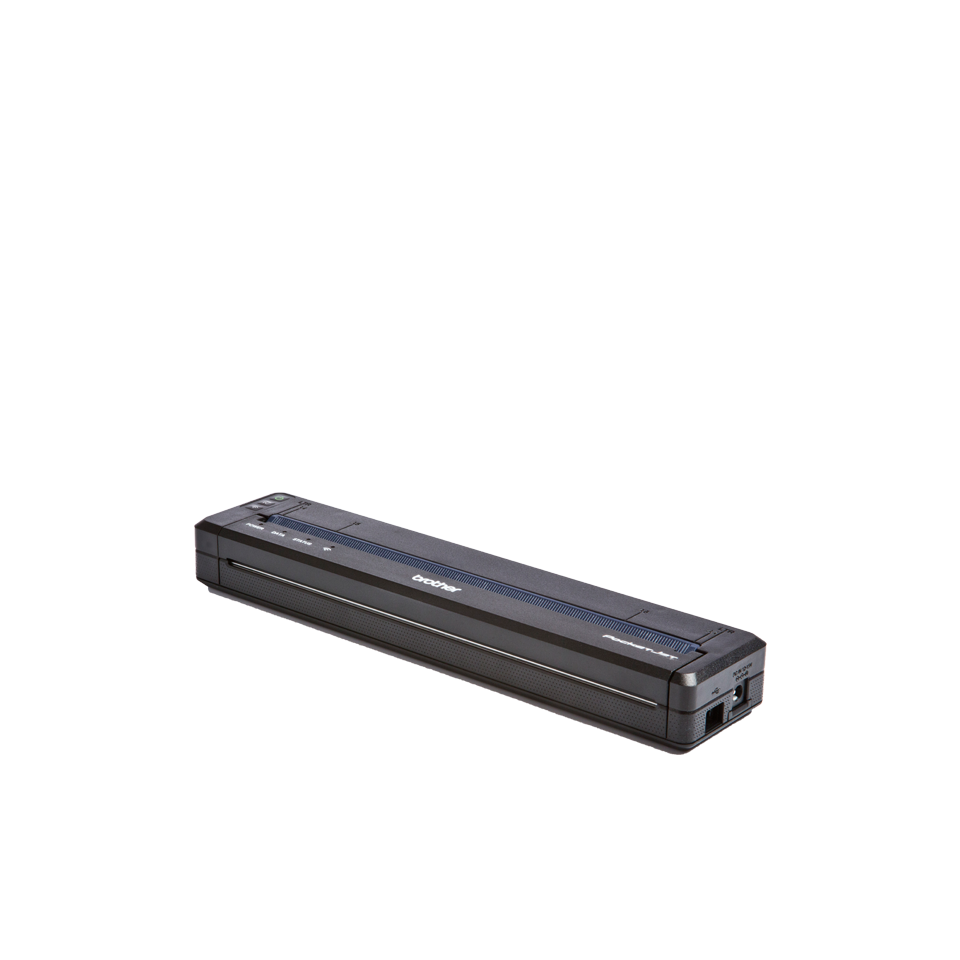

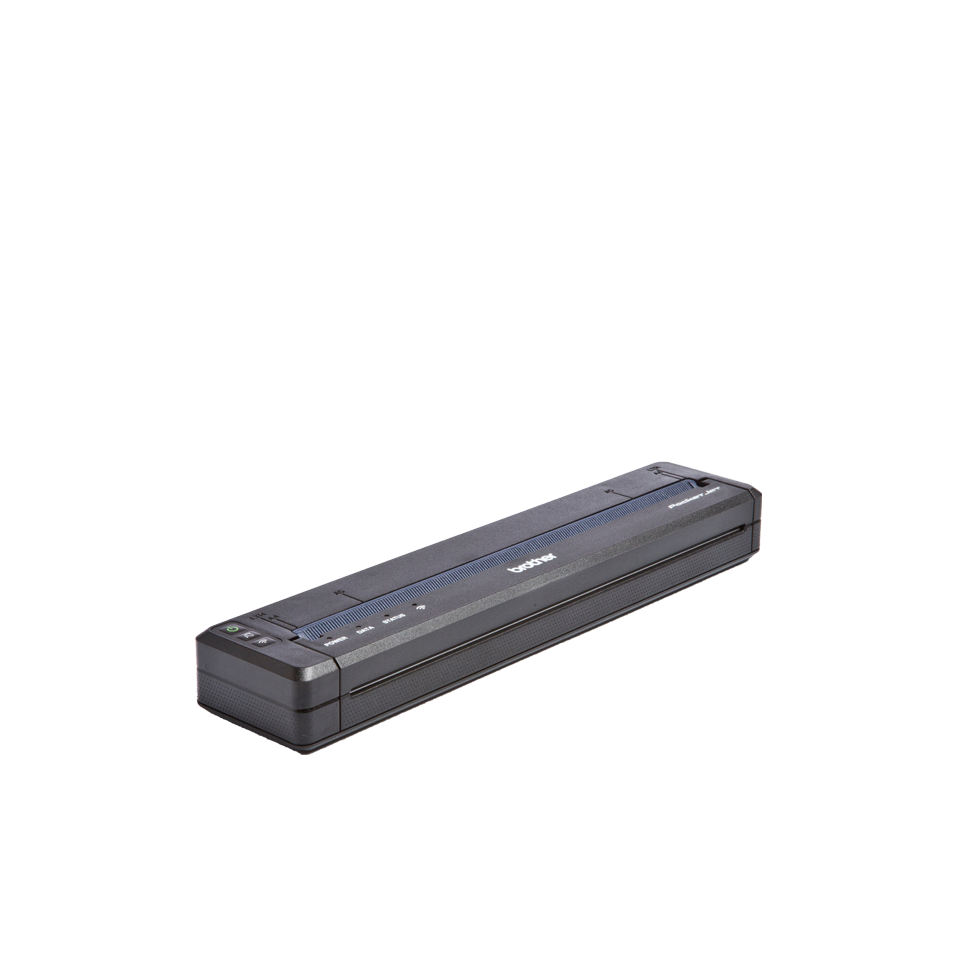

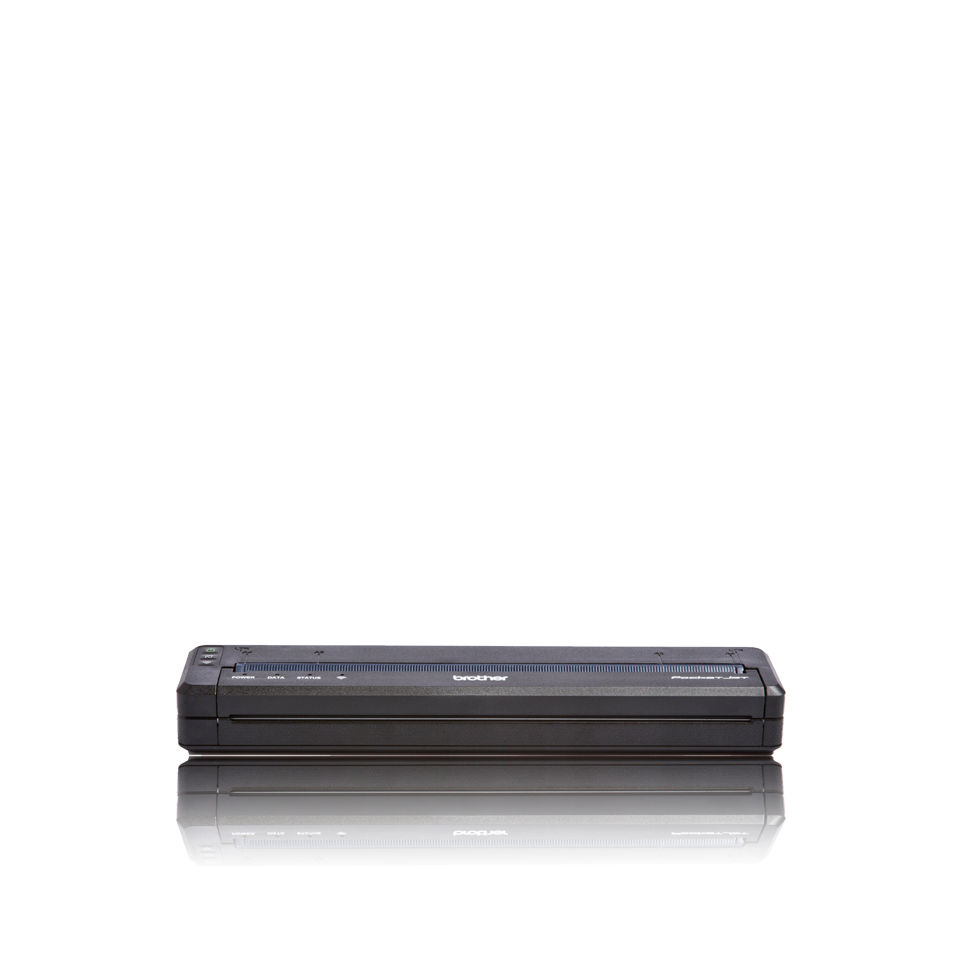

A4 mobile printer with Wi-Fi and AirPrint support
PJ773z1
PJ773z1
Built-in Wi-Fi and USB connectivity with AirPrint support
HIgh-resolution 300dpi thermal print technology
Up to 8ppm print speed
iOS, Android, Windows, Mac, Linux and Citrix support
Optional high-capacity Li-ion battery for printing away from power sources
Customise your print solution with vehicle mounting kit, chargers and protective cases
Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.
The PJ-773 with built-in Wi-Fi and AirPrint offers a mobile A4 print solution compact enough to fit easily into a briefcase or computer bag, but that can also be permanently mounted in vehicles.
High-resolution thermal print technology at 300dpi produces crisp text at a print speed of up to 8 pages per minute.
Compatible with a wide range of mobile and desktop operating systems, the PJ-773 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available.
Printer Type | Mono |
---|---|
Barcode symbologies | Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet. 2D:PDF417/MicroPDF417, DataMatrix, Maxicode, QR Code/Micro QR Code, Aztec |
Max paper size | A4 |
Memory | RAM: 32MB, Flash: 6MB |
USB interface | Ver.2.0 (Full Speed). Peripheral plug type: Mini-B |
---|---|
Wi-Fi Direct | IEEE 802.11g/n (Wireless Direct) |
Wirelesss network interface | IEEE802.11b/g/n (Infrastructure Mode), IEEE802.11b/g/n (Adhoc Mode) |
Supported | iOS SDK (iOS 5 or later), Android SDK (Android ver 2.3 or later using Bluetooth, ver 3.1 or later using USB connection) |
---|
Dimensions | 255(W) x 55(D) x 30(H) mm |
---|---|
Wight | 480 g |
Contents | PJ-773 mobile printer, USB Cable, Printhead Cleaning Sheet, Documentation |
---|
Weights | Min: 105mm x 25.4mm, Max: 216mm x 5.49metres |
---|
Wireless network security | Adhoc mode: Open System (None/WEP), Infrastructure mode:[Personal mode] Open System (None/WEP), Public Key Authentication(WEP), WPA-PSK/WPA2-PSK (TKIP/AES), [Enterprise mode] LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES), Wireless Direct mode: WPA2-PSK (AES) |
---|
Supported | Windows - Vista/7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2, Mac OSX - v10.8/10.9/10.10, Linux - Redhat, Debian |
---|
A4 standard print speed | 8 |
---|---|
Resolution | 300x300dpi |
Bitmap fonts | Helsinki, Brussels, Letter Gothic Bold |
Emulations | ESC/P-P, ESC/P_B, Raster_P, P-touch Template |
Outline/Vector fonts | Helsinki, Brussels, Letter Gothic |
Supported | iPrint & Scan: (Android, iOS), AirPrint, Google Cloud Print Ver.2.0 (Chrome OS™/Android™2.1 or later/iOS 3.0 or later), MOPRIA, P-touch Editor, P-touch Transfer Manager, Citrix Xen App/Xen Desktop/Citrix Ready Certification (Windows only), EWS (Embedded Web Server) |
---|
Warranty | 1 year return to base |
---|
