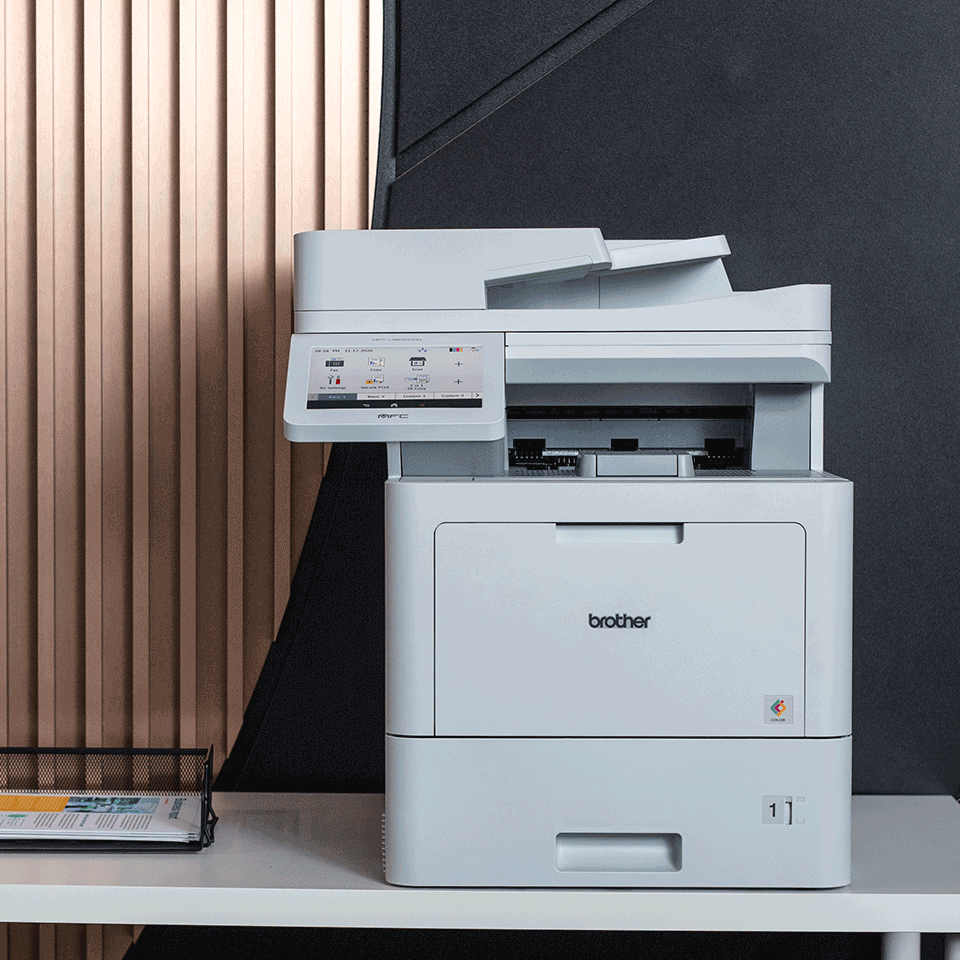

MFC-L9630CDN printer on white table, copper wall, document holder, colour documents

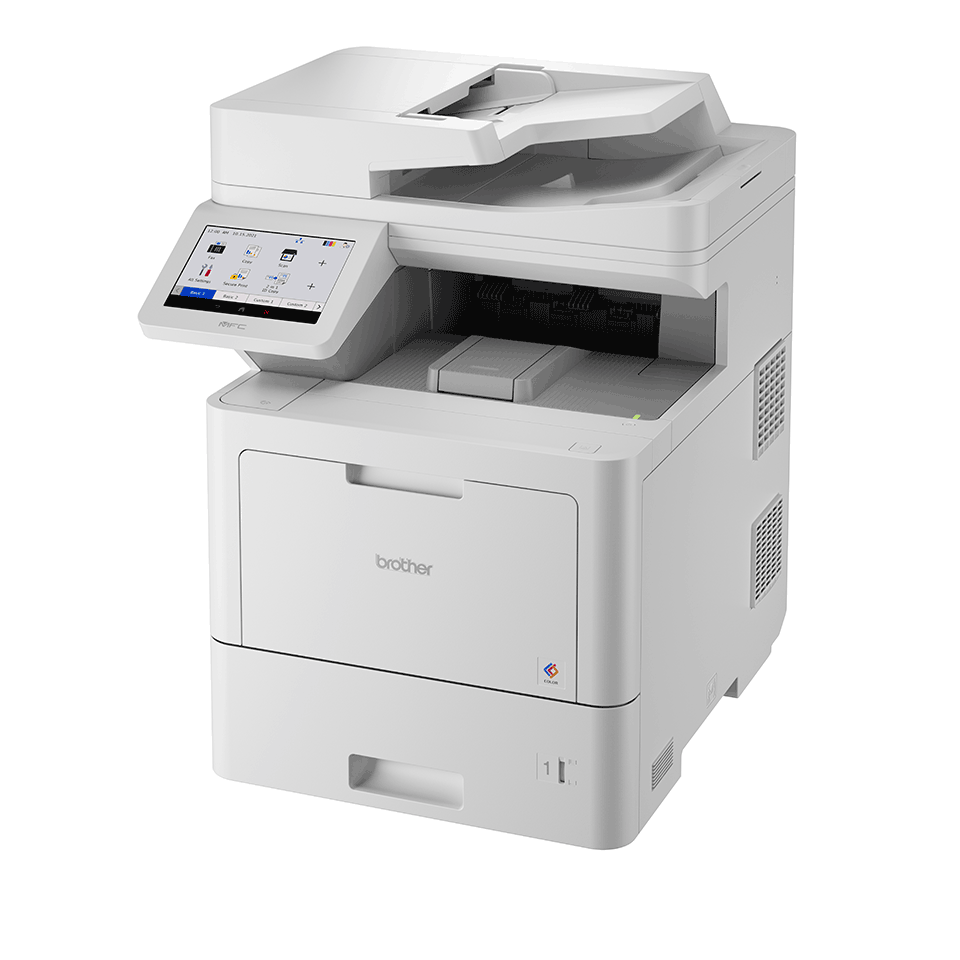

MFC-L9630CDN professional colour laser facing left

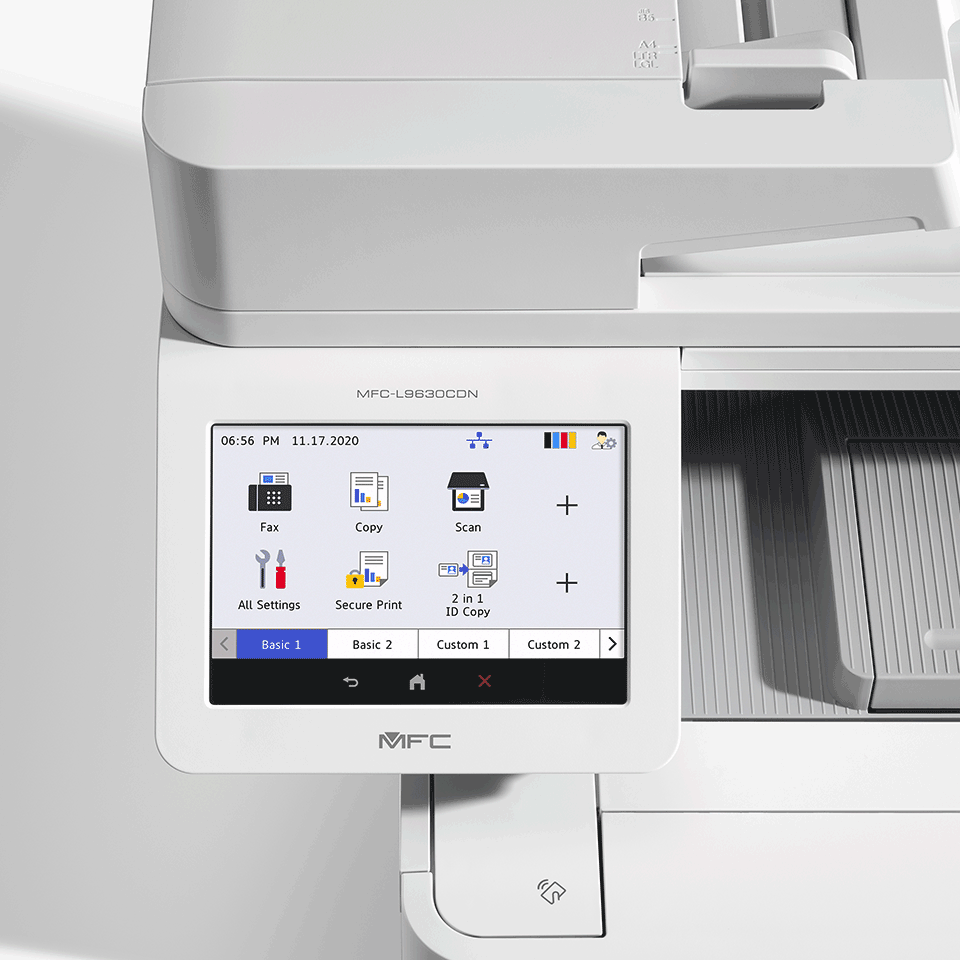

Close-up of MFC-L9630CDN all in one printer screen

Female sat in office working on laptop, notebook, colour documents, printer

MFC-L9630CDN professional colour laser facing forward

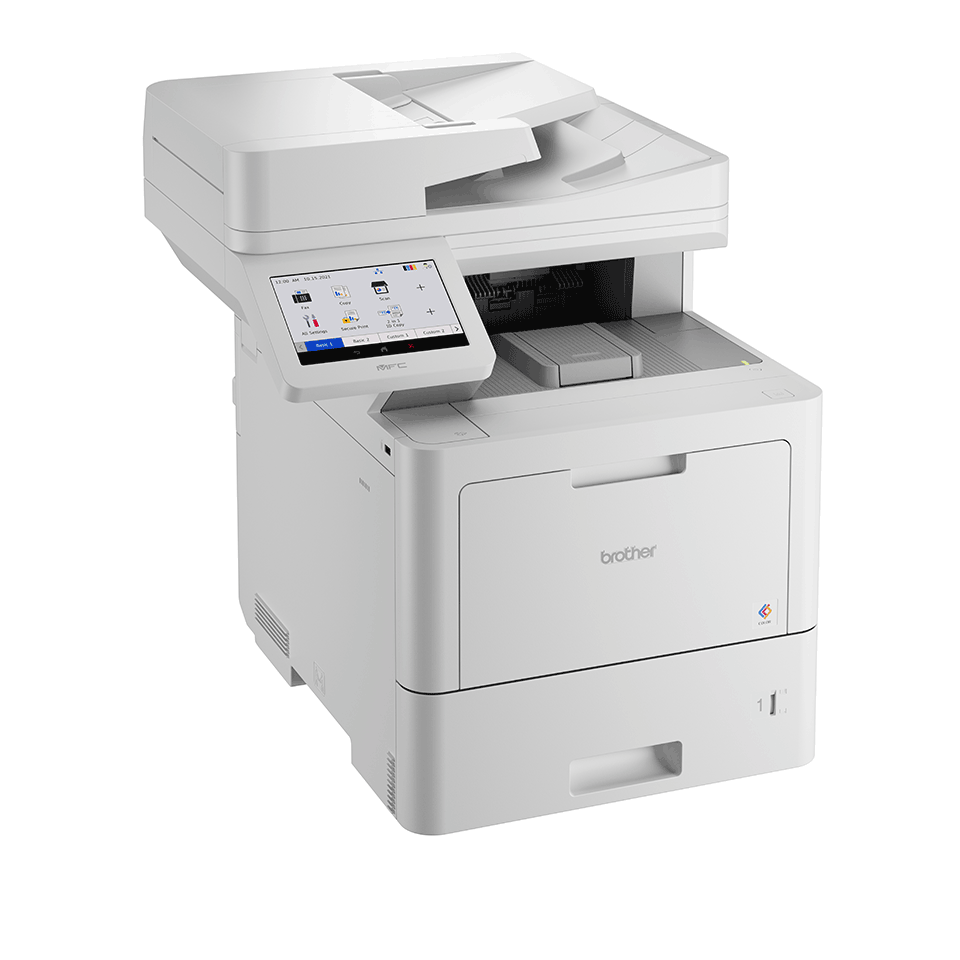

MFC-L9630CDN professional colour laser facing right

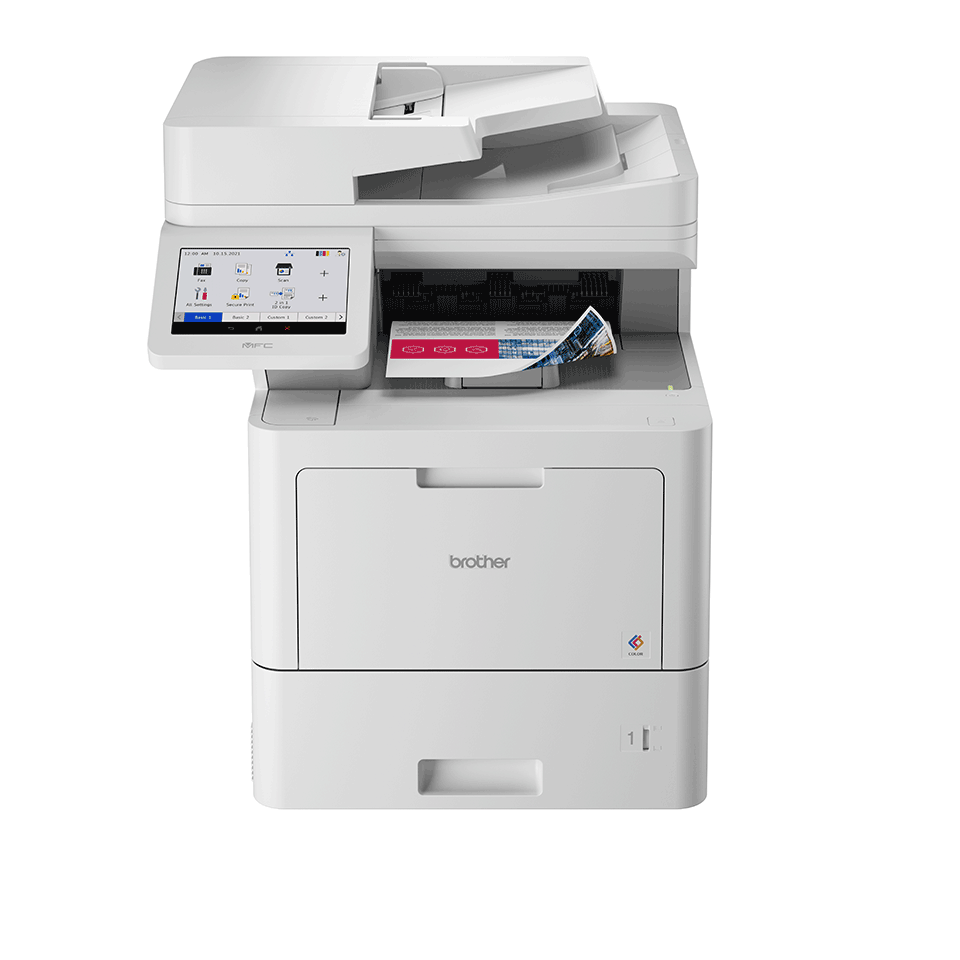

MFC-L9630CDN Professional A4 All-in-One Colour Laser Printer

Name: MFCL9630CDN
Brand: Brother
SKU: MFCL9630CDNzu1
Availability: OutOfStock

Professional level all-in-one A4 colour laser printer. Easily customise and automate complex workflows.

Item in stock Items in stock

Find a retailer

Support and documentation

Product Details

Print up to 40ppm (pages per minute)
2-sided print, up to 28 sides per minute
2-sided scan up to 100ipm (images per minute) Colour and Mono
520 Sheet paper input tray expandable to 2,600
100 sheets Automatic Document Feeder (ADF)
9,000 pages (BK), 6,500 pages (CMY) inbox toners*

Product Overview

Our most advanced colour printing technology is guaranteed to make the right impression when it counts. Producing vibrant, professional colour documents and accurate digital files every time. With NFC (for mobile print & card authentication) as standard for secure printing and a large customisable touchscreen, it's ideal for busy offices requiring a user-friendly printer with enterprise level security.

Large 17.6cm touch screen
Integrated NFC reader
Cloud Secure Print
Gigabit network as standard with optional 2.4/5GHz Wi-Fi module
Expandable memory capacity (USB flash drive not included)
Fully compatible with 3rd party print management and document management solutions including Kofax, YSoft and more

*Approx declared toner yield value in accordance with ISO/IEC 19798

Specifications

General

Printer Type	Colour
Function	Copy, Fax, Print, Scan
Maximum Paper Size	A4
Technology	Laser
Laser Classification	Class 1 Laser Product
Maximum Paper Size	A4
Connectivity	USB, Wired, Wireless (optional)
Memory	Internal (2GB)
Control Panel	Touchscreen
Display	Yes

Printing

One Sided Print Speed A4 Colour	40 (pages per minute)
Two Sided Print Speed A4 Colour	28 (sides per minute)
First print out time	Less than 10,0 seconds from ready mode
Mobile Print	Yes
Automatic 2 sided print	Yes
Embedded Fonts	PCL (73 scalable fonts), Postscript (66 scalable fonts), 12 bitmap fonts
Printer Functions	N-up Printing, Poster Printing, ID Printing, Booklet Printing, Print Profiles, Print Text In Black, Watermark Printing, Manual 2-Sided Print, Carbon Copy, Direct Print, Job Separation, Match Media, Reverse Print, Secure Print, Skip Tray, Storage Print, Print Complete Notice
Embedded Barcodes PCL	16 bar codes fonts - Code39, Codabar, Code128 (set A, set B, set C), Code93, EAN128 (set A, set B, set C), EAN-13, FIM (US-PostNet), GS1Databar, Interleaved 2 of 5, ISBN (EAN), ISBN (UPC-E), MSI, Post Net (US-PostNet), UPC-A, UPC-E, EAN-8

Printer Drivers

ChromeOS (Supports native ChromeOS printing), Linux (CUPS, LPD/LPRng (x86/x64 environment)), macOS (10,14,x), PCL Drivers (Generic PCL XL driver), PostScript (Driver for Windows that enables you to print to any network or locally connected Brother laser printer that supports PostScript), Windows (10), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,

In the box

Power supply cord, Quick setup guide, Product safety guide, Warranty, Device, Supplies, Drum, Waste Toner Box, Belt

Paper Handling ⁽¹¹⁾

Paper input	Standard (Tray 1) (520 sheets), Multi Purpose Tray (100 sheets, 15 envelopes), Automatic Document Feeder (100 sheets)
Paper output	Face Down (250 sheets), Face Up (1 sheet (straight path))
Media Sizes Standard	Standard (Tray 1) (A4, Letter, A5, A5 (Long Edge), A6, Executive, Folio, Mexico Legal, India Legal, Legal, B5), 2-Sided Print (A4, Letter, Legal, Mexico Legal, Folio), Lower Trays (A4, A5, Executive, Letter, Legal, Folio, Mexico Legal, India Legal), Multi Purpose Tray (DL Envelope, Width: 76,2mm to 215,9mm x Length: 127mm to 355,6mm, C5 Envelope, Com-10, Monarch)
Media Types and Weights	Multi Purpose Tray (Plain, Tykt papir, 60 - 230g/m2, Bond, Recycled, Thicker, Tyndt papir, Envelope paper, Glossy), Standard (Tray 1) (60 - 230gsm, Plain, Recycled, Tykt papir, Thicker, Tyndt papir), Automatic Document Feeder (45 - 120g/m2), Auto 2-Sided (Glossy, Plain, Recycled, Tykt papir, Thicker, Tyndt papir)
Paper Sensors	Input, Output

Copy

Copy Resolution	Up to 600 x 600 dpi
Copy Functions	Multi-Copying/Stack/Sort, Enlargement/Reduction Ratio %, N in 1 Copying, 2 in 1 ID Copying, Copy Interrupt
FCOT	Colour (13,0 seconds), Mono (12,0 seconds)
Grey Scale	256 shades of grey (8 bit)
One Sided Copy Speed A4 Colour	40

Network

Wired Network Security	802,1x (EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP), SSL/TLS (HTTPS, IPPS, SMTP), SMTP-AUTH, SNMP v3, IPsec, Kerberos, APOP
Wireless network security ⁽²²⁾	802,1x (EAP-FAST, EAP-TLS, EAP-TTLS, PEAP), SSL/TLS (HTTPS, IPPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), SMTP-AUTH, SNMP v3, Kerberos, IPsec, APOP
Wireless Setup Support	Yes

Scanning

Scanner type	Dual CIS
Resolution	Interpolated (Up to 19200 x 19200dpi), Colour (600 x 600dpi, 600 x 600dpi), Mono (600 x 600dpi, 600 x 600dpi), Optical
Colour Depth	Input (30 bit Colour Processing), Output, 24 bit Colour Processing
Inkjet Scan Grey Scale	256 levels 8 bit
One Sided Scan Speed A4 Colour ⁽³⁾	100
One Sided Scan Speed A4 Mono ⁽³⁾	100
Two Sided Scan Speed A4 Colour ⁽³⁾	100
Two Sided Scan Speed A4 Mono ⁽³⁾	100

Scanner functions

Standard Functions	Scan to (USB, Email Server, Network Folder, SharePoint (On Premise), SFTP, FTP, File, Image, OCR, Email)
Scan Profiles	25 Preset network
Scan Features	Skip Blank Page, Auto Deskew, Background Processing, Character Correction, Colour Drop, Edge Emphasis, Edge Fill, Reduce Noise, Rotate Image
Direct Scan	Yes
Document Separation	Yes

Drivers

Scan Drivers

Windows (Windows 10), Linux ( SANE), Macintosh ( AirPrint Scanning, 10,14,x), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,

Fax

Automatic 2-Sided Faxing, Auto Reduction, Automatic Redial, Broadcasting, Chain Dialling, Cover Page, Distinctive Ring Detection (UK, DK only), Error Correction Mode (ECM), Fax Forwarding, Fax to Server, Greyscale, PC-Fax Send and Receive, Fax Stamp, Telephone Index, Batch Transmission, Remote Retrieval, Internet Fax (I-Fax), External Telephone Answering Device port (TAD), Memory Transmission , Out of Paper Reception, Station ID, Telephone Line port

Fleet Management Tools

LAN/WAN Management Software (BRAdmin Professional), Unattended Installer, MSI Installer, Embedded Web Server, Driver Deployment Wizard, Mass Deployment Tool, Status Monitor

Operating Systems And Software

Software supplied - Windows

Windows Software (Brother iPrint&Scan, Kofax PaperPort), Macintosh Software (Brother iPrint&Scan Desktop), Utilities, Easy Setup

Supplies And Accessories

Toner	Inbox Toner (BK Toner, CMY Toner), BK Toner (9,000 pages), CMY Toner (6,500 pages), BK (TN821XXL BK - 15000 pages, TN821XL BK - 1.2000 pages), C, M, Y (TN821XL CMY - 9000 pages)
Drum Unit	100,000 pages (3 page / job)
Belt	150,000 pages (2 page / job)
Waste Toner Box	100,000 pages
Optional accessories	Lower Tray - 250 Sheets (LT-330CL), Tower Tray (4 x 520 sheet tower tray (TT-4000), Tower Tray Connector (TC-4100)), Lower Tray - 500 Sheets (LT-340CL), Maximum combinations (Maximum combinations: 3 x LT-330CL or 2 x LT-340CL, or 1 x LT-330CL + 1 x LT-340CL, or TT-4000 with TC-4100), Paper trays (Maximum combinations), Cabinet, Card holder, Filter Holder, Wi-Fi Module

Carton Contents

Power supply cord, Quick setup guide, Product safety guide, Warranty, Device, Supplies, Drum, Waste Toner Box, Belt

Dimensions And Weights

Weight With Carton	42.7
Dimentions With Carton	580mm (W) x 663.7mm (D) x 734mm (H)
Weight Without Carton	36.5
Dimentions Without Carton	503mm (W) x 541mm (D) x 586mm (H)

Operating Environment

Power Requirement	AC (220-240V AC 50/60Hz)
Power Consumption	Power Off (0.04W), Printing (770.0W), Ready (85.0W), Copying in quiet mode (420.0W), Copying (730.0W), Deep Sleep (1.1W), Sleep (16.8W)
Sound Power	Printing (<6,9B(A)), Quiet Mode (<6,68BA), Ready (<3,06BA), Deep Sleep (<3,06BA)
Sound Pressure	Printing (56,5dB), Ready (17,2dB), Quiet Mode (53,0dB)
TEC Value	0.687
Operating	Humidity % (20 - 80%), Degrees Celsius (10°C - 32°C), Degrees Fahrenheit (50°F - 90°F)
Storage	Degrees Сelsius (0°C - 40°C), Degrees Fahrenheit (32°F - 104°F), Humidity % (10 - 90%)
Warmup Time	20

Environmental

Blue Angel, Nordic Swan, GS Mark

Address Book

Speed Dials, Group Dial, LDAP

Connectivity

Local interface	USB 2,0 Host (Rear, Front), Hi-Speed USB 2,0
Wireless network interface	2,4GHz: IEEE 802,11b/g/n, Wi-Fi Protected Setup™ (WPS), 5GHz: IEEE 802,11a/n
Wired Interface	Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T)
Display IP Address	Yes
Wireless Setup Support	Yes
WiFi Direct TM	Yes

Mobile and web connectivity

Mobile and Web Connectivity

Brother Mobile Connect (Android, iPad / iPhone), Apple AirPrint, Brother Print Service Plugin, Mopria®, Brother Apps, Web Connect

Security features

Wired Network Security	802,1x (EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP), SSL/TLS (HTTPS, IPPS, SMTP), SMTP-AUTH, SNMP v3, IPsec, Kerberos, APOP
Wireless Network Security ⁽²²⁾	802,1x (EAP-FAST, EAP-TLS, EAP-TTLS, PEAP), SSL/TLS (HTTPS, IPPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), SMTP-AUTH, SNMP v3, Kerberos, IPsec, APOP
IP Filter	Yes
IPv4	ARP, RARP, BOOTP, DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNSResolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SNMPv1/v2c/v3, HTTP Server, TFTP server, ICMP, LDAP, CIFS Client, FTP Client, POP3 Client, HTTP/HTTPS Server, IPP/IPPS, LDAPS, SMTP Client, SNTPClient, TELNET Server, TFTP client, Web Services (Print), Web Services (Scan)
IPv6	NDP, RA, mDNS, DNS Resolver, LLMNR responder, LPR/LPD, Custom Raw Port / Port9100, SNMPv1/v2c/v3, FTP Server, TFTP server, SNTP Client, Web Services (Print), Web Services(Scan), LDAP, CIFS Client, HTTP/HTTPS Server, ICMPv6, IPP/IPPS, SMTP Client, POP3, TELNET Server, TFTP client
Features	Firmware Updates, Port-based Network Access Control (IEEE 802,1x), E-mail Notifications, E-mail Reports, Secure Function Lock 3,0, Setting Lock, Secure Key Management, Secure Print, Automatic Intrusion Detection, Cloud Secure Print, On-Premise Active Directory/LDAP Authentication, Restrict network protocols, Store Print Log, Digitally-signed Firmware, Syslog

NFC

NFC	Yes (RFIDeas pcProx Enroll, Elatec, RFIDeas AIR ID Enroll, RDR-6081AKU, RDR-6281AKU, RDR-6381AKU, RDR-6E81AKU, RDR-6H81AKU, RDR-7081AKU, RDR-7581AKU, RDR-7F81AKU, TWN3 MIFARE, TWN3 MIFARE NFC, TWN3 Multi ISO, TWN4 MIFARE NFC)

Caveats

[3] Scan Speeds based on ISO/IEC 17991
[11] Capacity calculated with 80gsm paper
[22] Optional wireless module required
