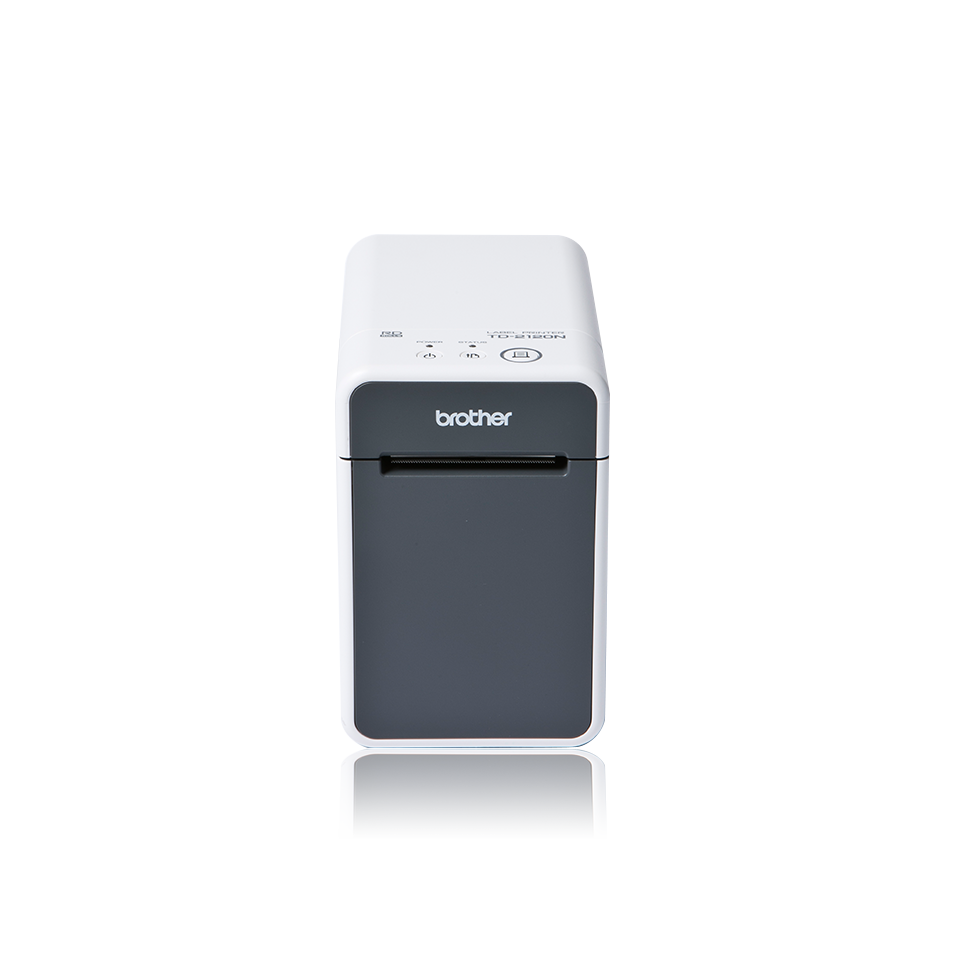

The versatile desktop labeller with optional portability
TD2120Nzu1
TD2120Nzu1
High quality 203dpi print resolution
Network capability
USB & serial connectivity
Up to 150mm/second print speed
32MB RAM, 16MB Flash
ZPL II printer language emulation
A compact machine with the speed, features and media capacity of a desktop printer plus the option to get out and about if you need to, the TD-2120N allows you to print professional quality custom labels or receipts at 200dpi, wherever you are in the workplace.
Printing from your existing systems is simple thanks to our range of software developer kits, plus the optional wireless means you can connect direct from your mobile device or PC for ultimate convenience. You can also add a battery and touchscreen to go truly portable.
The flexible TD-2120N can accommodate rolls of up to 5” in diameter, meaning less time wasted reloading media, plus there’s a choice of optional extras that ensure it’s perfectly suited to your business needs.
| Maximum label width | 62 |
|---|---|
| Usage Type | Industrial |
| Buttons | Power, Feed |
| Memory capacity | 6 MB |
| Serial | RS232C Original serial cable -PA-SCA-001 |
|---|---|
| USB interface | USB Ver. 2.0 (Full Speed) (mini-B, Peripheral) |
| Wired network interface | 10/100BASE-TX |
| Wirelesss network interface | IEEE802.11 b/g/n |
| Dimensions | 110 mm (W) x 215 mm (D) x 172 mm (H) |
|---|---|
| Weight | 1.34 kg |
| AC adaptor | Yes |
|---|---|
| Label design software | Included |
| Software disc | CD ROM |
| USB cable | Yes |
| User guide | Yes |
| Quick setup guide | Yes |
| Wireless network | Wireless LAN IEEE802.11 b/g/n |
|---|---|
| Wireless network security | Infrastructure Mode/Adhoc Mode |
| Windows | Windows 7, Windows 8, Windows Vista, Windows XP |
|---|
| Maximum print length | 1000 mm |
|---|---|
| Maximum print width | 56 mm |
| Resolution (dpi) | 203 |
| Standard print speed | 152.4 mm per second |
| Supported commands | P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P |
| SDK (Software Development Kit) | Yes |
|---|
| Optional accessories | Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Label Peeler (PA-LP-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001) |
|---|
Download and install the latest drivers and software for your Brother products.
View Downloads
Designed for use on a cart or virtually any retail, medical or other work space, the TD-2120N is among the most compact and fastest 56mm wide powered desktop/network thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 150mm/second. Also prints tags and receipts for kiosk and POS applications.
An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows Server® 2012/2008R2/2008/2003 and Windows® 8/7/XP drivers, (ZPL II® compatibility,) and SDK's for iOS®, Android® and Windows Mobile® helps with integration into existing retail solutions.
