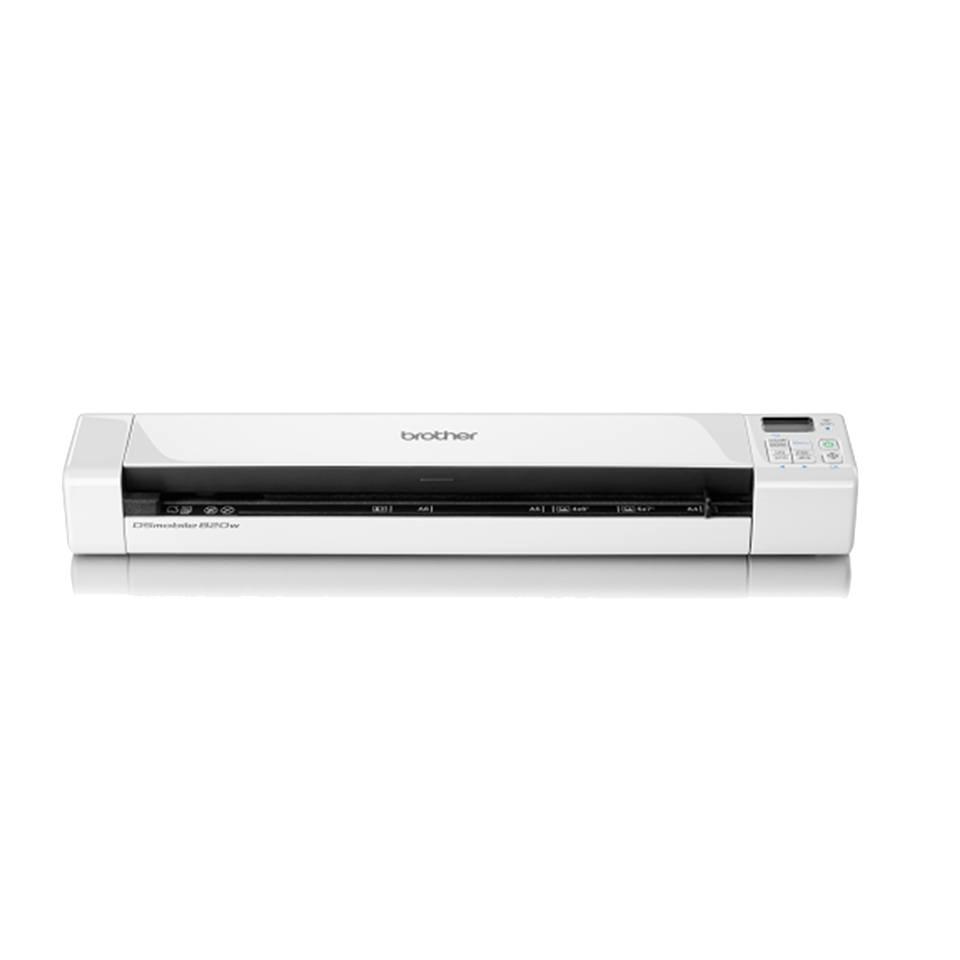

DS-820W

Wireless Portable Scanner

Specifications

General

Usage Type Mobile
Battery AP-1306 Lithium
Display LCD
Display size 3.0cm
4GB SD card included (up to 32GB)

Connectivity

USB interface Hi-Speed USB 2.0
Wirelesss network interface 802.11 b/g/n

Dimensions & weights

With carton 354 W x 254 D x 70 H mm
With carton 1360 g
Without carton 308 W x 53 D x 41 H mm
Wight 440 g

Energy Consumption

Operating Up to 2.5 watts
Ready mode 1 watts
Sound pressure 50 dBA

Environment

Operating humidity 15 - 85%
Operating temperature 5 - 35C

In the Box

Others DSmobile 820DW Scanner, Micro USB Cable, Lithium-ion Battery, 4GB SD Memory Card, Carrier Sheet, Calibration Sheet, Cleaning Cloth, Soft Carrying Bag, Installation DVD with software and drivers, User's Manual (printable from DVD), Quick Setup Guide, Warranty Sheet, and Product Registration Sheet
Software disc Windows®: Nuance™ PaperPort™ 12SE, NewSoft Presto!® BizCard® 6, DSmobileCapture, Button Manager V2. Mac®: Presto!® PageManager® 9, NewSoft Presto!® BizCard® 6, DSmobileCapture.

Media specifications

Types and sizes Photo, Paper, Card (not embossed, less than 0.8mm)
Weights 60 - 105 gsm
ADF media sizes Paper 1-sided: 90x55-812.8x215.9mm, Plastic card: 40x40-86x86mm, Paper Thickness: 0.07-0.8mm

Network

IPv4 Yes
Network protocols ARP, DNS Resolver, HTTP, ICMP, DHCP with BOOTP
Wireless network IEEE802.11 b/g/n
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES). SSL/TLS (HTTPS)

Scanning

Scan to Image, email, Printer, Network, FTP, OCR (software supplied)
Colour A4 scan speed 7.5 ppm
Gray scale 16/8 bit
Interpolated scan resolution 1200 x 1200
SANE compatability Yes
Scan resolution from ADF 600 x 600
TWAIN compatability Windows 7, Windows 8, Windows Vista, Windows XP

Supplies and accessories

Optional accessories 4GB SD card, Calibration sheet

Warranty

Warranty 2 Years back to base
