MFC-L9570CDWT Colour All-in-One + Duplex, Wireless, Tray
Professional all-in-one multifunction colour laser printer with double-sided printing capabilities designed for businesses needing maximum performanceProduct Details
- Up to 31ppm colour & mono print speed
- 100ipm colour & mono 2-sided scan
- 17.6cm touchscreen
- USB, Wireless and Gigabit Wired network
- NFC (for mobile print & card authentication)
- Up to 6,500 Black, Cyan, Magenta & Yellow inbox toners
Product Overview
Maximise your performance with the large user-friendly touchscreen, and super fast 100ipm ADF.
The MFC-L9570CDWT comes with a large paper handling capacity, so that less time can be spent replenishing paper, maximising device uptime. With impressive scan and printing speeds, you can be sure that the MFC-L9570CDWT will be a great asset to your business.
Ink & Supplies
-

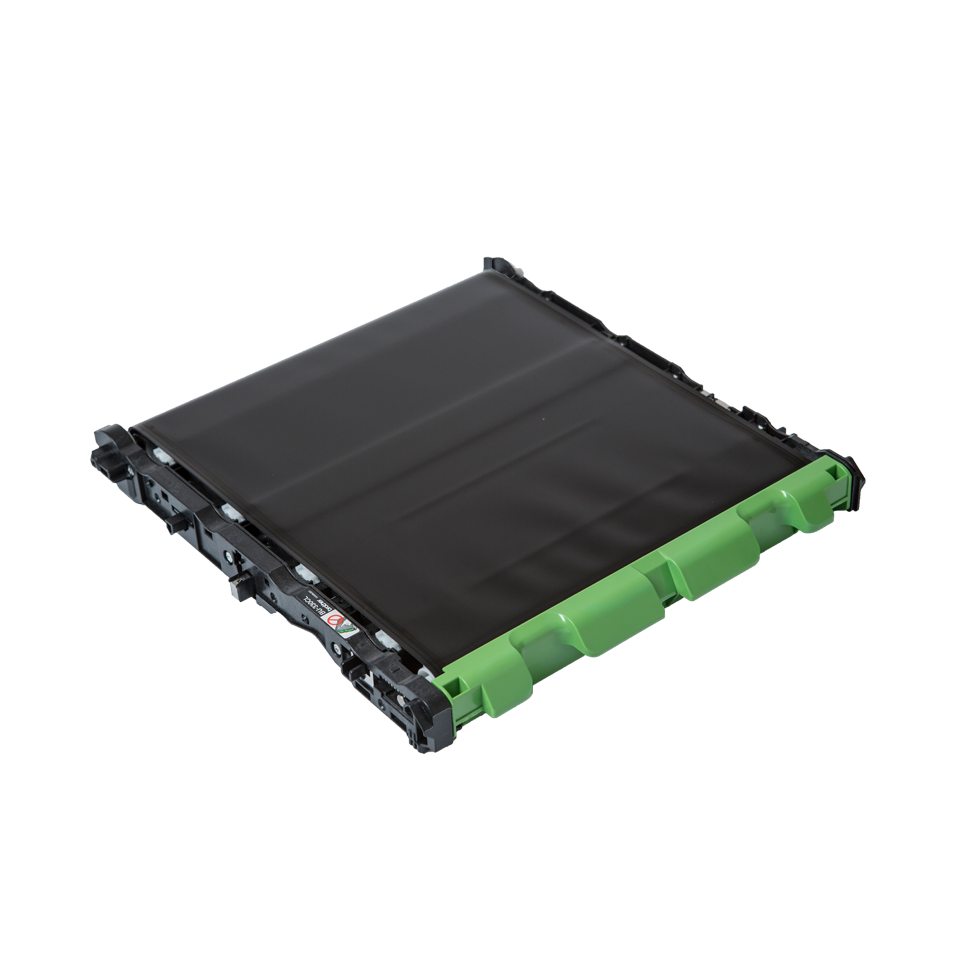

The Brother BU-330CL Transfer Belt Unit. Duty cycle of 50,000 pages.€67.93Inc. VAT€55.23Ex. VAT
-

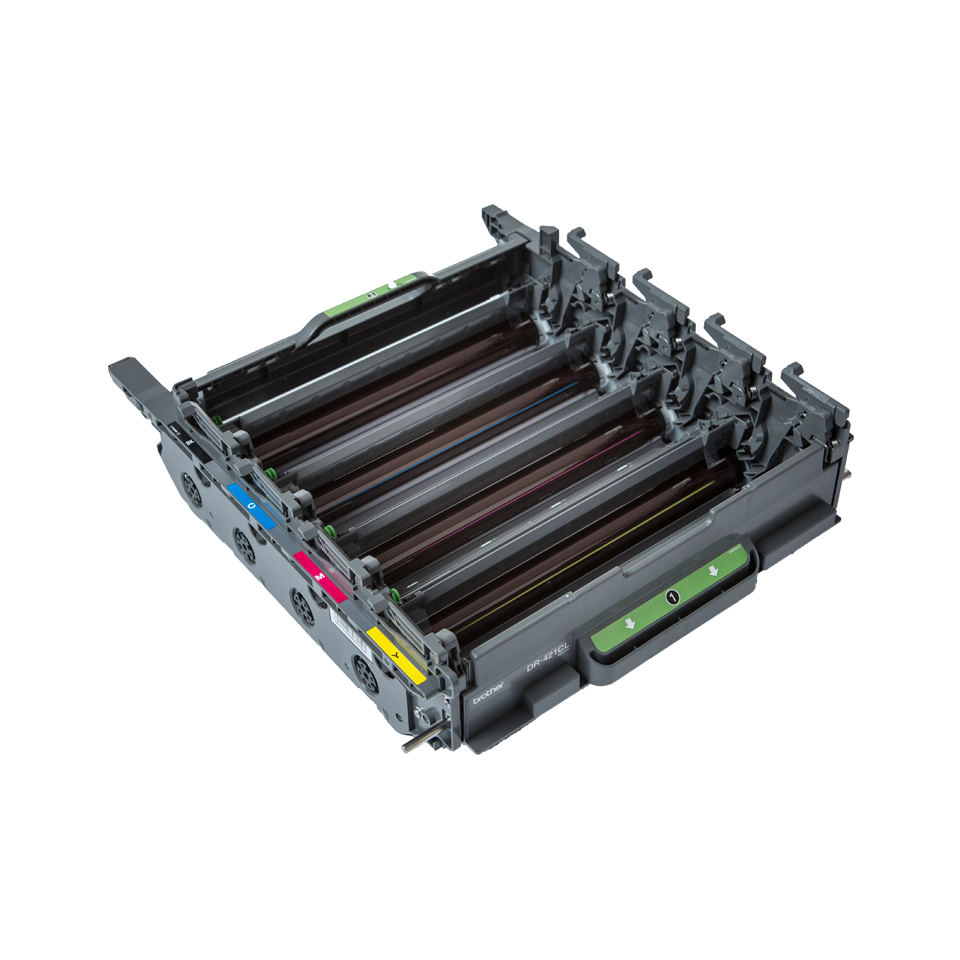

The Brother DR-421CL Black, Cyan, Magenta and Yellow Drum Unit Pack. Prints 30,000 pages.€179.43Inc. VAT€145.88Ex. VAT
-
Black Ultra High Yield Toner Cartridge€157.01Inc. VAT€127.65Ex. VAT
-
Cyan Ultra High Yield Toner Cartridge€402.49Inc. VAT€327.23Ex. VAT
-
Magenta Ultra High Yield Toner Cartridge€402.49Inc. VAT€327.23Ex. VAT
-

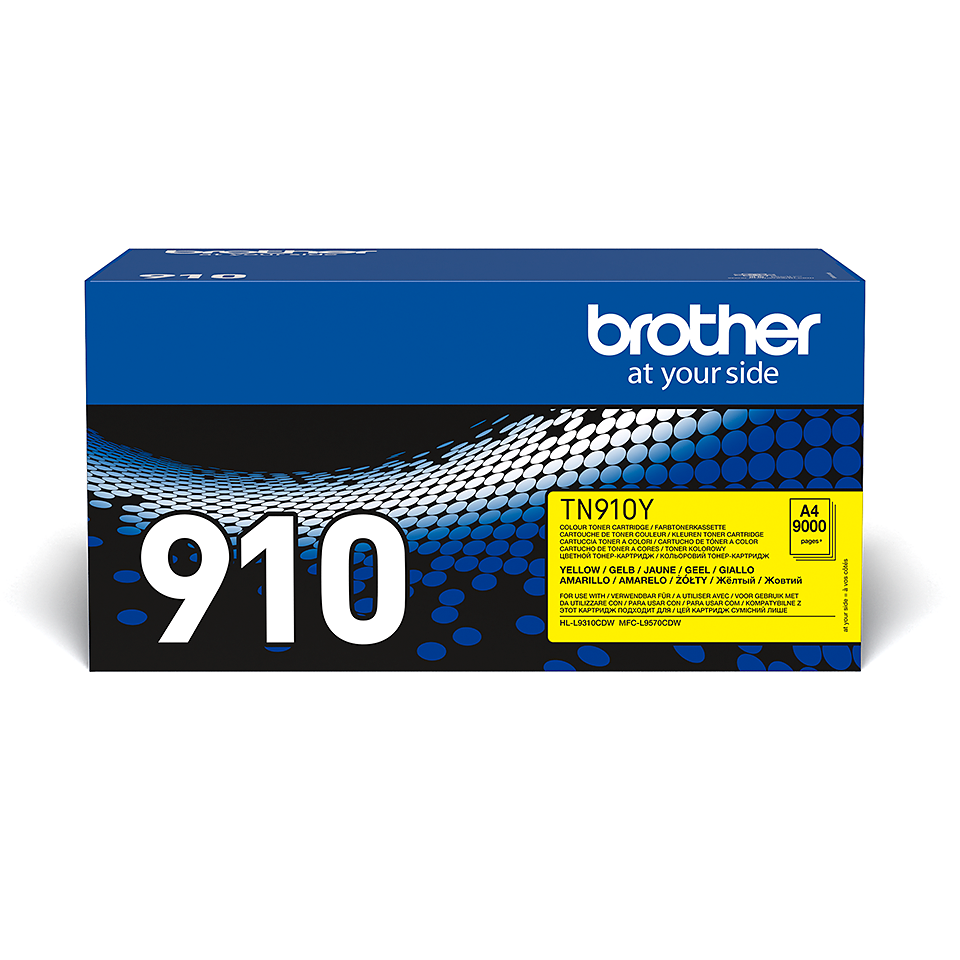

The Brother TN-910Y Yellow Toner Cartridge. Prints 9,000 pages.€402.49Inc. VAT€327.23Ex. VAT
-
The Brother WT-320CL Waste Toner Unit. Duty cycle of 50,000 pages.€26.21Inc. VAT€21.31Ex. VAT
-
The CH-1000, can be simply attached to the side of your printer€18.45Inc. VAT€15.00Ex. VATThis product is available from our authorized retailers
-
250 Sheet, A4 paper tray to be used with a range of Brother laser pritners€183.27Inc. VAT€149.00Ex. VATThis product is available from our authorized retailers
-
500 A4, Sheet Paper Lower Tray€207.87Inc. VAT€169.00Ex. VATThis product is available from our authorized retailers
Specifications
General
| Printer Type | Colour |
| Function | Print, Scan, Copy, Fax |
| Technology | Laser |
| Laser Classification | Class 1 Laser Product |
| Maximum Paper Size | A4 |
| Connectivity | Wireless, Wired |
| Memory | Internal (1GB) |
| Control Panel | Touchscreen |
| Display | No (17,6cm Colour Touchscreen), Yes |
| Processor | 800 |
Printing
| One Sided Print Speed A4 Mono | 31 (pages per minute) |
| One Sided Print Speed A4 Colour | 31 (pages per minute) |
| Two Sided Print Speed A4 Mono | 14 (sides per minute) |
| Two Sided Print Speed A4 Colour | 14 (sides per minute) |
| First print out time | Less than 15,0 seconds from ready mode |
| Automatic 2 sided print | Yes |
| Print Languages | PCL6, BR-Script3, PDF Version 1,7, XPS Version 1,0 |
| Quiet Mode | Yes |
| Embedded Fonts | PCL (66 scalable fonts), Postscript (66 scalable fonts), 12 bitmap fonts, 16 barcodes |
| Printer Functions | N-up Printing, Poster Printing, ID Printing, Booklet Printing, Print Profiles, Watermark Printing, Manual 2-Sided Print |
| Embedded Barcodes PCL | Codabar, Code128 (set A, set B, set C), Code39, EAN-13, EAN-8, EAN128 (set A, set B, set C), FIM (US-PostNet), Interleaved 2 of 5, ISBN (EAN), ISBN (UPC-E), Post Net (US-PostNet), UPC-A, UPC-E, Code93, GS1Databar, MSI |
Printer Drivers
| Printer Drivers | Windows (10, 8, 7), Linux (CUPS, LPD/LPRng (x86/x64 environment)), Server (2016, 2012, 2008 R2, 2008, 2012 R2), macOS (10,11,x, 10,10,x, 10,12,x), PostScript (Driver for Windows that enables you to print to any network or locally connected Brother laser printer that supports PostScript), PCL Drivers (Generic PCL XL driver), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software, |
Paper Handling (11)
| Paper input | Automatic Document Feeder (80 sheets), Multi Purpose Tray (50 sheets), Lower Trays (250 sheets, 500 sheets) |
| Paper output | Face Up (1 sheet (straight path)), Face Down (150 sheets) |
| Media Sizes Standard | Standard (Tray 1) (A4, Letter, A5, A5 (Long Edge), Executive, Legal, Folio, Mexico Legal), 2-Sided Print (A4), Automatic Document Feeder (Width: 105mm to 215,9mm x Length: 147,3mm to 355,6mm), Multi Purpose Tray (Width: 76,2mm to 215,9mm x Length: 127mm to 355,6mm) |
| Media Types and Weights | Standard (Tray 1) (Plain, Recycled, Coloured and letterhead, 60 - 105g/m2), Multi Purpose Tray (Plain, Recycled, Bond, Coloured and letterhead, Glossy, 60 - 163g/m2), Auto 2-Sided (Plain, Recycled, 60 - 105g/m2, Coloured and letterhead, Glossy), Automatic Document Feeder (Plain, Recycled, 64 - 90g/m2) |
| Paper Sensors | Input |
Copy
| Copy Functions | 2 in 1 ID Copying, Multi-Copying/Stack/Sort, Enlargement/Reduction Ratio %, N in 1 Copying, Receipt Copying, Outline & Copy |
| FCOT | Colour (17,0 seconds), Mono (16,0 seconds) |
| Grey Scale | 256 Shades |
| One Sided Copy Speed A4 Colour | 31 |
| One Sided Copy Speed A4 Mono | 31 |
Scanning
| Scanner type | Dual CIS |
| Resolution | Interpolated (Up to 19200 x 19200dpi), Scanner Glass (Mono, Colour), ADF (Mono, Colour) |
| Colour Depth | 24 bit Colour Processing |
| Inkjet Scan Grey Scale | 256 levels 8 bit |
| One Sided Scan Speed A4 Colour (3) | 50 |
| One Sided Scan Speed A4 Mono (3) | 50 |
| Two Sided Scan Speed A4 Colour (3) | 100 |
| Two Sided Scan Speed A4 Mono (3) | 100 |
Scanner functions
| Standard Functions | Scan to (Email, File, Image, OCR, SharePoint, FTP, Microsoft Office, Searchable PDF, Network Folder, USB, SFTP, Email Server, Network), Windows Web Services scanning, Cloud Scanning, Evernote |
| Scan Features | Remove Background, Skip Blank Page, Split PDF, 1 to 2 scan, ID scan, Auto Deskew |
| Direct Scan | Yes |
Drivers
| Scan Drivers | Linux ( SANE), Windows (Windows 10, TWAIN, WIA, Windows 7, Windows 8, ISIS), Macintosh ( TWAIN, 10,11,x, 10,12,x, 10,10,x, ICA), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software, |
Fax
| Fax | Auto Reduction, Broadcasting, Distinctive Ring Detection (UK, DK only), Error Correction Mode (ECM), Greyscale, Out of Paper Reception, PC-Fax Send and Receive, Automatic Redial, Chain Dialling, Cover Page, Fax Forwarding, Fax Stamp, Telephone Index, Automatic 2-Sided Faxing, Fax to Server, Batch Transmission, Internet Fax (I-Fax), Fax Modem, Memory Transmission , Out of Paper Reception, Fax / Tel Switch, Quick-Scan, Remote Set-Up, Remote Maintenance, Remote Access, Speaker / Ring Volume, Super Fine |
Fleet Management Tools
| Fleet Management Tools | LAN/WAN Management Software (BRAdmin Professional), Unattended Installer, MSI Installer, Embedded Web Server, Driver Deployment Wizard |
Supplies And Accessories (8)
| Toner | Inbox Toner (BK Toner, CMY Toner), CMY Toner (6,500 pages), BK Toner (6,500 pages), BK (TN910 BK - 9000 pages), C, M, Y (TN910CMY - 9000 pages) |
| Drum Unit | 50,000 pages (3 page / job) |
| Belt | 130,000 pages (3 page / job) |
| Waste Toner Box | 50,000 pages |
| Optional accessories | Paper trays (Lower Tray - 250 Sheets, Lower Tray - 500 Sheets), Card holder (CH-1000), Lower Tray - 250 Sheets (LT-330CL), Lower Tray - 500 Sheets (LT-340CL) |
Carton Contents
| Carton Contents | Supplies, Drum, Device, Power supply cord, Quick setup guide, Driver software for Windows®, Waste Toner Box, Belt |
Dimensions And Weights
| Weight With Carton | 45.6 |
| Dimentions With Carton | 675mm (W) x 652mm (D) x 1033mm (H) |
| Weight Without Carton | 42.6 |
| Dimentions Without Carton | 495mm (W) x 526mm (D) x 682mm (H) |
Duty Cycle
| Recommended Monthly Volume | Up to 6,000 pages |
Operating Environment
| Power Consumption | Power Off (0.03W), Printing (580.0W), Ready (70.0W), Sleep (10.0W), Deep Sleep (1.7W) |
| Sound Power | Printing (<6,56B(A)), Quiet Mode (<6,0B(A)), Ready (Inaudible) |
| Sound Pressure | Printing (49,0dB), Quiet Mode (44,0dB), Ready (Inaudible) |
| TEC Value | 1.9 |
| Warmup Time | 31 |
Environmental
| Environmental | Blue Angel, Nordic Swan |
Address Book
| Address Book | Group Dial (20), Speed Dials (300), LDAP |
Solutions
| Solutions | Brother Solutions Interface (BSI) |
Connectivity
| Local interface | Hi-Speed USB 2,0 |
| Wireless network interface | 2,4GHz: IEEE 802,11b/g/n (InfrastructureMode), Wi-Fi Protected Setup™ (WPS), IEEE 802,11g (Wi-Fi Direct) |
| Wired Interface | 10BaseT/100BaseTX |
| Wireless Setup Support | Yes |
| Wireless Applications | Yes |
| WiFi Direct TM | Yes |
Mobile and web connectivity
| Mobile and Web Connectivity | Brother iPrint & Scan, Apple AirPrint, Brother Print Service Plugin, Mopria® |
Security features
| Wired Network Security | SSL/TLS (IPPS, HTTPS, FTPS, SMTP, POP3, IMAP4), 802,1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), APOP, SMTP-AUTH, SNMP v3, Kerberos, IPsec |
| Wireless Network Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), APOP, SMTP-AUTH, Kerberos, IPsec, ZDO NOT USE - 802.1x ( LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), ZDO NOT USE - SSL/TLS (SMTP, HTTP, IPP, POP3, IMAP4) |
| IP Filter | Yes |
| IPv4 | ARP, RARP, BOOTP, DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNSResolver, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, SNMPv1/v2c/v3, TFTP server, ICMP, Web Services (Print), Web Services (Scan), SNTPClient, LDAP, CIFS Client, FTP Client, POP3 Client, IMAP4 Client, mDNS, IPP/IPPS, FTP Server, HTTP/HTTPS Server, TFTP client, TELNET Server |
| IPv6 | NDP, RA, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port / Port9100, IPP/IPPS, SMTP Client, FTP Server, FTP Client, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP client, TFTP server, ICMPv6, SNTP Client, LDAP, Web Services (Print), Web Services(Scan), IMAP4, POP3 |
| Features | E-mail Notifications, E-mail Reports, Secure Print, Setting Lock, Store Print Log |
NFC
| NFC | Yes |
Caveats
- [3] Scan Speeds based on ISO/IEC 17991
- [8] Approx. declared yield value in accordance with ISO/IEC 19798
- [11] Capacity calculated with 80gsm paper
Assistance
More about this product
Better reliability
Built to perform for longer and meet the demands of high output work environments, Brother's latest colour laser range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.
Tighter Security
The advanced security capabilities of the MFC-L9570CDW*, ensures you are always in full control of your print infrastructure. You can improve data protection by restricting machine access with network user authentication, and secure function lock, which allows you to password-protect certain device functions. Plus, the NFC reader can be used to integrate with secure printing, enabling users to release their print job from any chosen device by swiping an ID card or entering a PIN.
(*Includes MFC-L9570CDW, MFC-L9570CDWT versions)
Better reliability
Built to perform for longer and meet the demands of high output work environments, Brother's latest colour laser range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.
Putting you back in control of your print
A true print technology solution goes beyond hardware. We know control is integral when it comes to print costs. We make it easy with PrintSmart CostControl. It gives full visibility of who is printing what, and allows you to improve budgeting by setting print quotas and taking advantage of better reporting usage. You can upgrade to PrintSmart Secure Pro. It allows you to collect print data from connected devices to better understand how resource is being used in the office.
