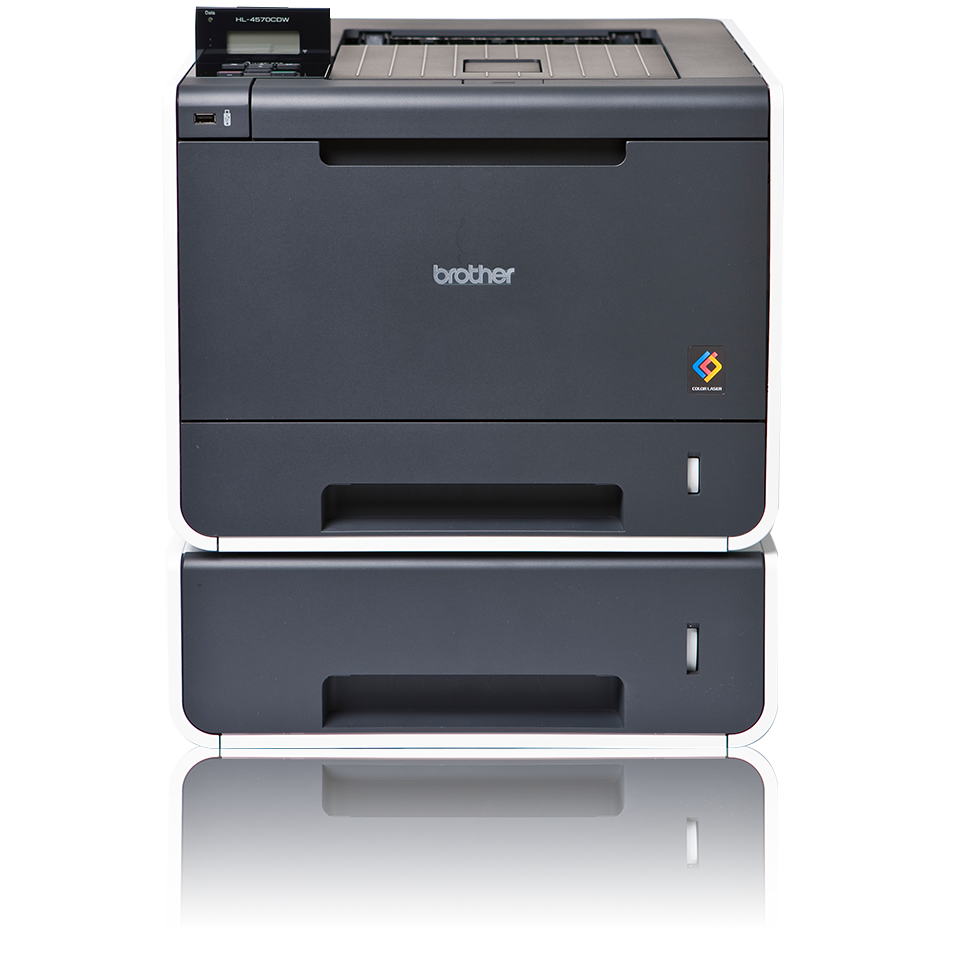

HL-4570CDWT

Discontinued Product

Supplies & Accessories

Specifications

Printer Type	Colour
Functions	Print
Display	Backlit LCD
Display size	2-line, 16 characters backlit green
Laser classification	Class 1 Laser Product (IEC60825-1:2007)
Max paper size	A4
Memory	128MB Expandable up to 384MB, using industry standard 1 x DDR2 (144 PIN) slot
Technology	Laser

Connectivity	Wireless
Local interface	Hi-Speed USB 2.0
Wired network interface	10/100 Base-TX, Wireless LAN IEEE802.11b/g (Infrastructure Mode/Adhoc Mode)
Wirelesss network interface	IEEE 802.11b/g/n

With carton	650(W) x 574(D) x 521(H)mm / 25.5kg
Without carton	410(W) x 486(D) x 313(H)mm / 21.0kg

Blue Angel environmental accreditation	Yes
	Yes
Nordic Swan environmental accreditation	Yes
Sound power	Less than 6.77B(A) when printing in colour, less than 4.09B(A) in ready mode
Sound pressure	Less than 57dBA when printing in colour, less than 33dBA in ready mode
Typical electrical consumption	2.0kWh / Week

Contents	Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide

Types and sizes	Standard Paper Trays - Plain Paper, Thin Paper, Recycled Paper. Multi-Purpose Tray - Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelopes (Thick & Thin), Glossy Paper, Standard Paper Trays - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio. Multi-Purpose Tray - Width 69.8mm to 216mm, Length 116mm to 406.4mm
Weights	Standard Paper Trays - 60 to 105g/m2 (16 to 28lb) Multi-Purpose Tray - 60 to 163g/m2 (16 to 43lb)

Secure function lock v2	Configure individual access restrictions by user and by function
Wireless network	IEEE 802.11b/g/n
Wireless network security	WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos

Supported	Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows XP Home Edition, Windows XP Professional (32 & 64 bit editions), Windows® 2000 Professional, Windows Server® 2003 (Network only / 32 bit & 64 bit editions), Windows Server® 2008 (Network only / 32 bit & 64 editions), Windows Server® 2008 R2 (Network only) Mac OS X 10.4.11, 10.5.x, 10.6.x Linux printer driver for CUPS & LPD/LPRng printing system (x86, x64 environment)

Supported

Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows XP Home Edition, Windows XP Professional (32 & 64 bit editions), Windows® 2000 Professional, Windows Server® 2003 (Network only / 32 bit & 64 bit editions), Windows Server® 2008 (Network only / 32 bit & 64 editions), Windows Server® 2008 R2 (Network only) Mac OS X 10.4.11, 10.5.x, 10.6.x Linux printer driver for CUPS & LPD/LPRng printing system (x86, x64 environment)

Paper Input	250 & 500 Sheet Standard Paper Trays [750 Sheets Total], 50 Sheet Multi-Purpose Tray
Paper Output	150 Sheets (Face Down), 1 Sheet (Face up) Straight Paper Path

A4 standard print speed	28
Resolution	Up to 2,400 x 600dpi print resolution
Automatic 2 sided print	Yes
Emulations	PCL6, BR-Script3 (Postscript®3 Language Emulation)
First print out time	16 seconds
Recommended monthly volume	4000 pages

Supported	AirPrint, b-guard, Br-Docs, BSI, Cortado Cloud Print, Dropbox, Evernote, Google Cloud Print, Google Docs, iPrint & Scan, ISIS, Managed Print Services

Supplies	Inbox Toners 2,500 pages BK 1,500 pages C, M, Y, Standard Toner Black (TN-320BK) 2,500 pages Standard Toner Colour (TN-320C/M/Y) 1,500 pages, Super High Yield Black (TN-328BK) 6,000 pages Super High Yield Colour (TN-328C/M/Y) 6,000 pages. Drum Unit [DR-320CL] 25,000 A4 pages. Belt Unit [BU-300CL] Up to 50,000 pages. Waste Toner Box [WT-300CL] Up to 50,000 pages.
