Brother TJ-4520TN Industrial Label Printer

4 inch industrial thermal label printer with LCD display, print width up to 104mm and print speeds up to 12ips

Print speeds of up to 12ips with 300dpi resolution

LCD display to indicate printer status

Print width of up to 104mm

Product Overview

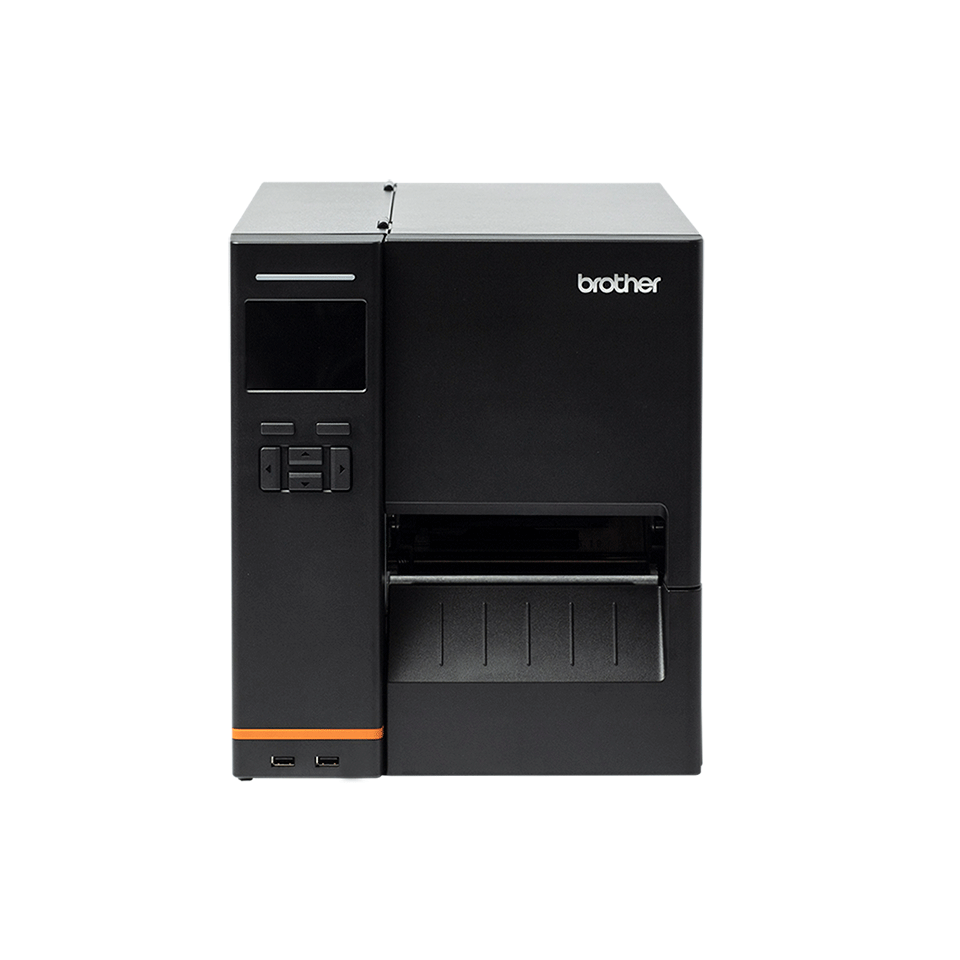

TJ4520TN_main

FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported

High capacity 600m thermal transfer ribbon means fewer media changes

Connect easily with USB, USB Host, Serial, Ethernet and optional dual wireless interface (WiFi and Bluetooth)

Key features

  • Print speeds of up to 12ips with 300dpi resolution
  • LCD display to indicate printer status
  • Print width of up to 104mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • High capacity 600m thermal transfer ribbon means fewer media changes
  • Connect easily with USB, USB Host, Serial, Ethernet and optional dual wireless interface (WiFi and Bluetooth)

About this product:

Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4520TN industrial label printer.

With fast print speeds, ZPL2 emulation compatibility and high ribbon capacity - this durable industrial printer has been built with you in mind.

Experience efficient labelling solutions and performance you can rely on with the TJ-4520TN industrial label printer.

Specifications

General

Buttons Power, Feed
Display LCD
Flash RAM 512 MB
LED Power, Status, Error
RAM 256 MB
Technology Thermal transfer / Direct thermal

Connectivity

Bluetooth Slot-in v4.2 (user option)
Bluetooth profiles SPP (Bluetooth classic), GATT (Bluetooth low energy)
Serial RS-232 (Max. 115200 bps)
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps
Wirelesss network interface Slot-in 802.11 a/b/g/n module (user option)

Dimensions & weights

Dimensions 276mm (W) x 326mm (H) x 502mm (D)
Weight 15.35 kg

In the Box

AC adaptor power cord Yes
Label design software Bartender Ultra Lite Edition (downloadable)
USB cable Yes
Quick setup guide Yes

Operating systems

Linux Linux
Macintosh Mac OS X 10.11.x or higher
Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 7, Windows 8.1
Android V5 or later
IOS iOS® 9 or later

Printing

Linear barcode symbologies Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPENN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417, TLC 39
Label detection sensor Yes
Maximum label width 114 mm
Maximum print length 11,430 mm
Maximum print width 104 mm
Resident fonts 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Resolution (dpi) 300
Standard print speed 305 mm per second
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 3 year return-to-base
Show more
Show less

Support & Downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product

TJ industrial label printer next to computer screen

Integrate with ease

With the Brother TJ label printers, there is no need to worry about integration.

Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.

High quality thermal printing

The TJ-4520TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time. With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.

Thermal ribbon being rolled inside Brother industrial label printer

Minimise downtime and save money

Offering a high ribbon capacity of 600m, the TJ industrial label printers ensure your workers spend as little time as possible changing supplies.

Fewer ribbon changes means saving your workers' time for other tasks, improving efficiency and saving you money.

Ethernet cable being plugged into back of TJ industrial label printer

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.

An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.

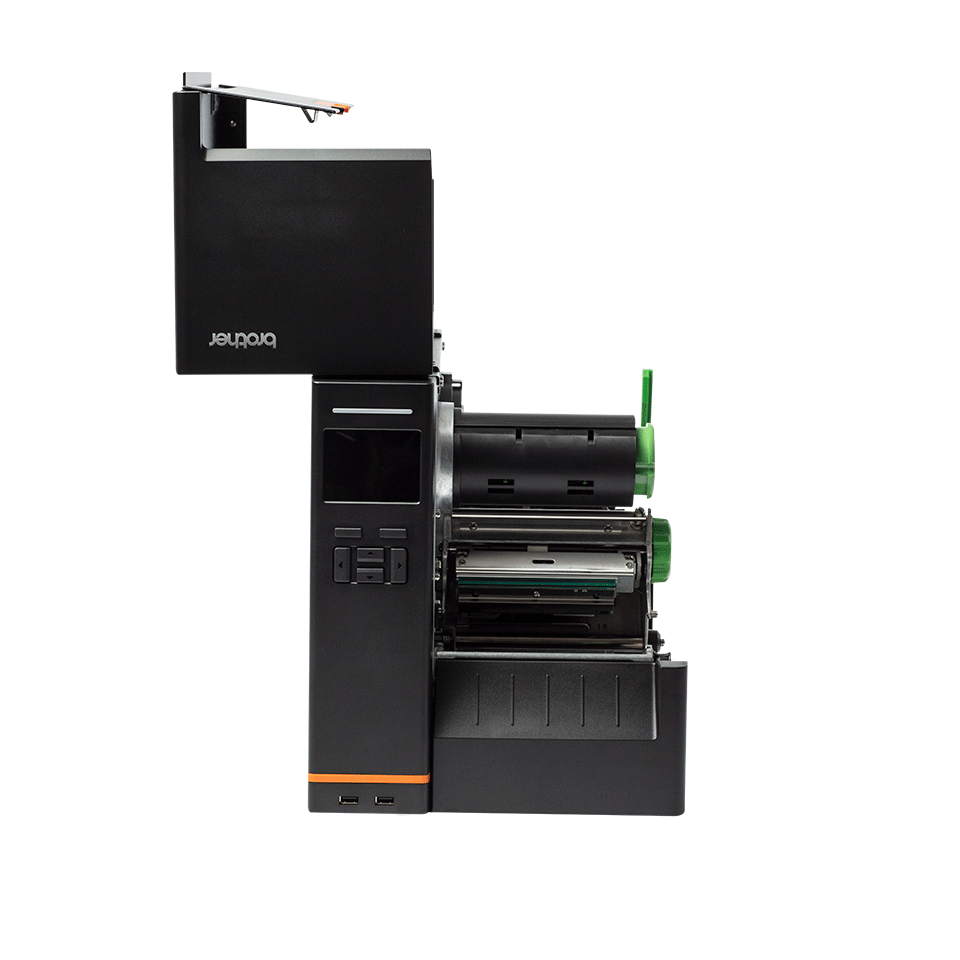

Brother TJ industrial label printer open with media inside

In-built durability

Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.

The high volume industrial printers feature a metal chassis and other durable design features to ensure they perform at their best, even in the toughest production environments.
