TD-2020

The smart choice for any workplace

€281.67 Inc. VAT

€229.00 Ex. VAT

USB & serial connectivity

Up to 150mm/second print speed

High quality 203dpi print resolution

Product Overview

TD2020

32MB RAM, 16MB Flash

ZPL II printer language emulation

Two Year Back to Base Warranty

Key Features

  • USB & serial connectivity
  • Up to 150mm/second print speed
  • High quality 203dpi print resolution
  • 32MB RAM, 16MB Flash
  • ZPL II printer language emulation
  • Two Year Back to Base Warranty

About this product:

Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2020 combines proven desktop printer performance with new levels of efficiency to help you do more for less.

Specifications

General

Memory capacity 6 MB
Technology Direct thermal

Connectivity

Serial Option: RS-232C
USB interface Ver 2.0 Full Speed
Wired network interface 10/100 Base-TX
Wirelesss network interface Option: IEEE802.11 b/g/n

Dimensions & weights

Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.34 kg

In the Box

AC adaptor Yes
Power supply cord Yes
Software Yes
USB cable Yes
User guide Yes
Quick setup guide Yes

Network

Wireless network Option: IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode

Operating systems

Windows Windows 7, Windows 8, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP

Printing

Bitmap fonts Up to 10 (depending on emulation used)
Copies 1-999 (P-touch Template mode)
Maximum label width 63 mm
Maximum print length 1000 mm
Maximum print width 56 mm
Outline/Vector fonts Up to 4 (depending on emulation used)
Resolution (dpi) 300 x 300
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P

P-touch Editor label design software

Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 154
Languages English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround

Solutions

SDK (Software Development Kit) Yes

Supplies and accessories

Optional accessories Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Label Peeler (PA-LP-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001)
Rolls RD rolls (die-cut and continuous)
Show more
Show less

Support & Downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product

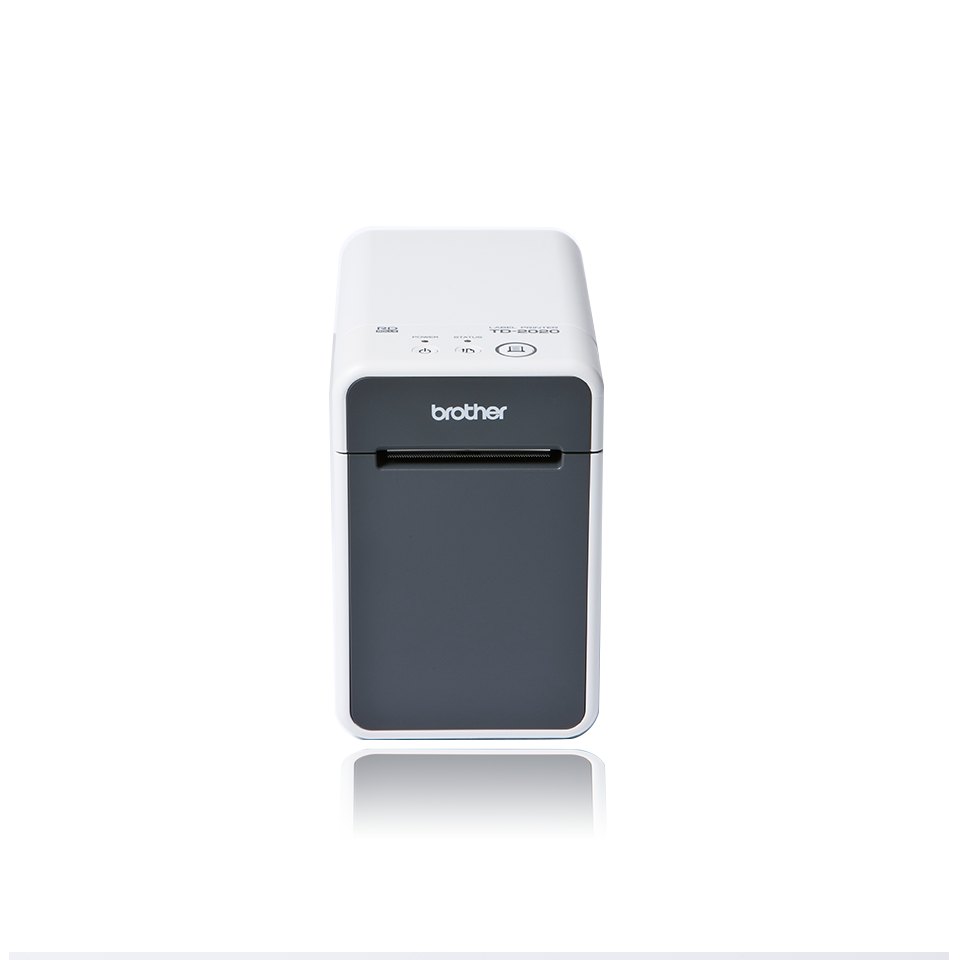

TD-2020 Professional Barcode Label Printer

Designed for use in almost any retail or other work space, the TD-2020 is among the most compact and fastest 56mm wide desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 150mm/second. Also prints tags and receipts for kiosk and POS applications.

An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows® 8/7/XP drivers (and ZPL II® compatibility) helps with integration into existing retail solutions. Comes with Brother label design and print software application.
