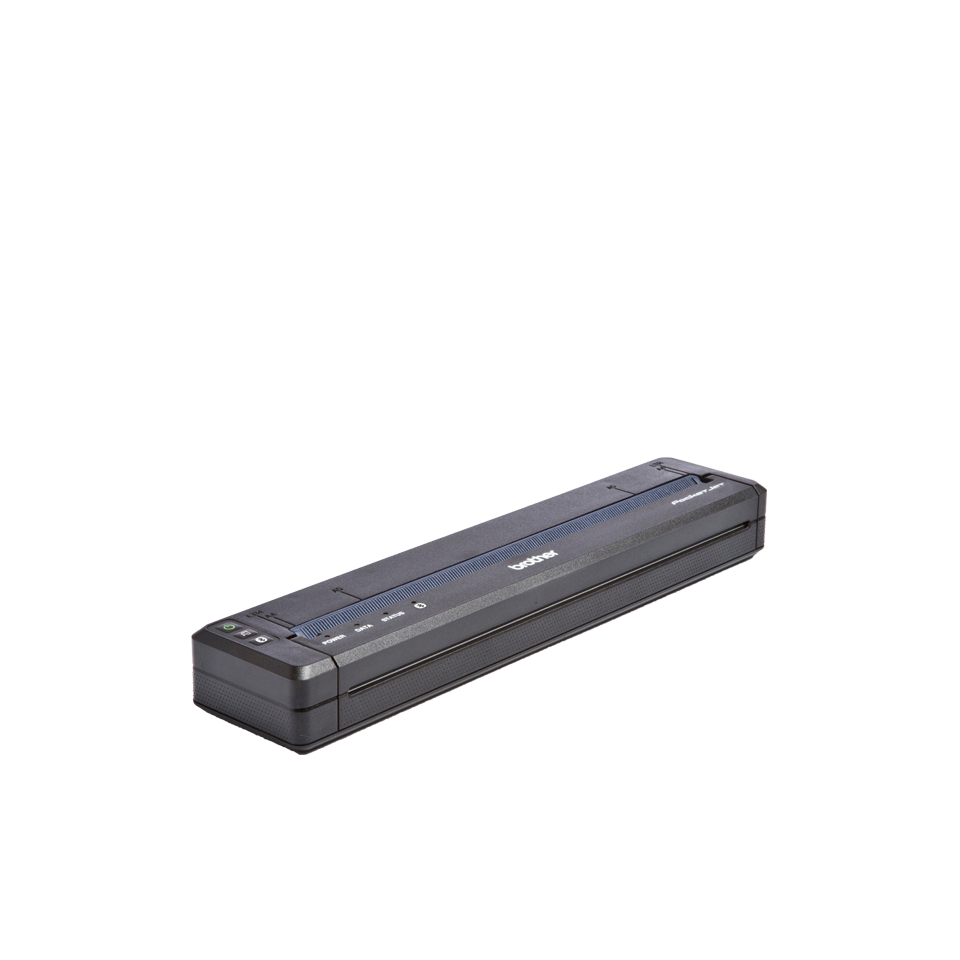

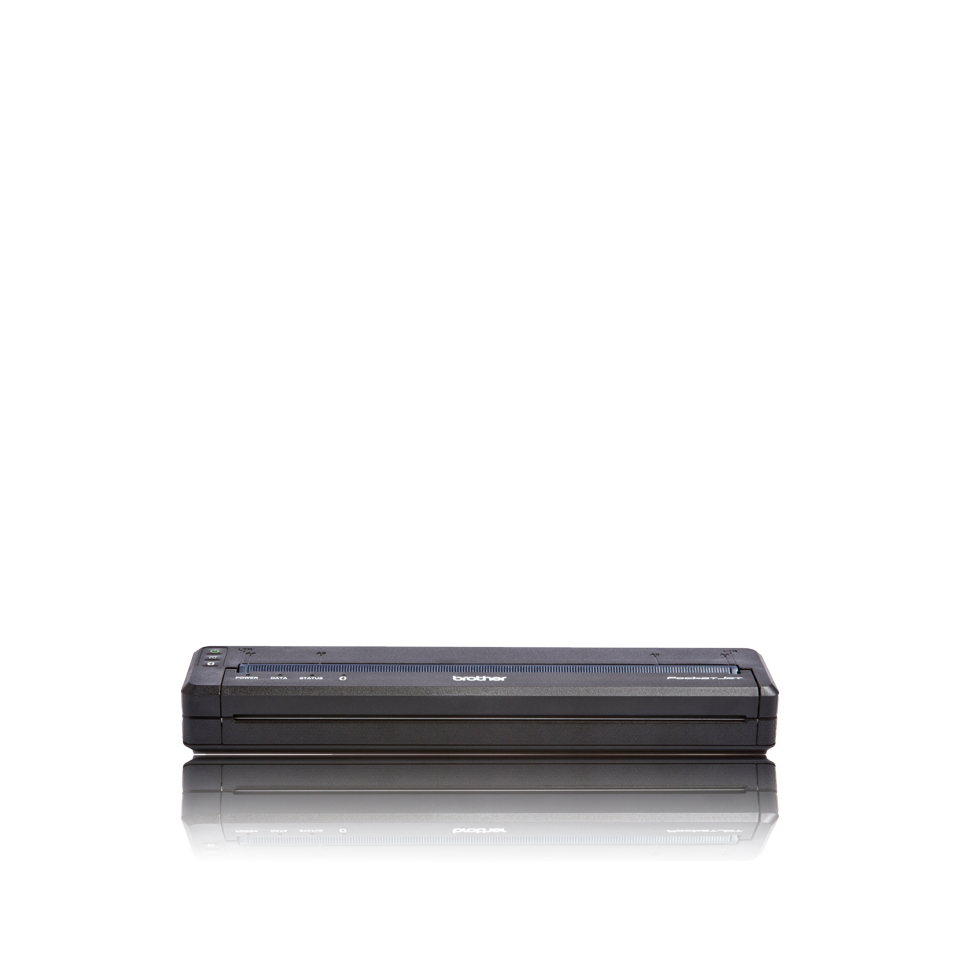

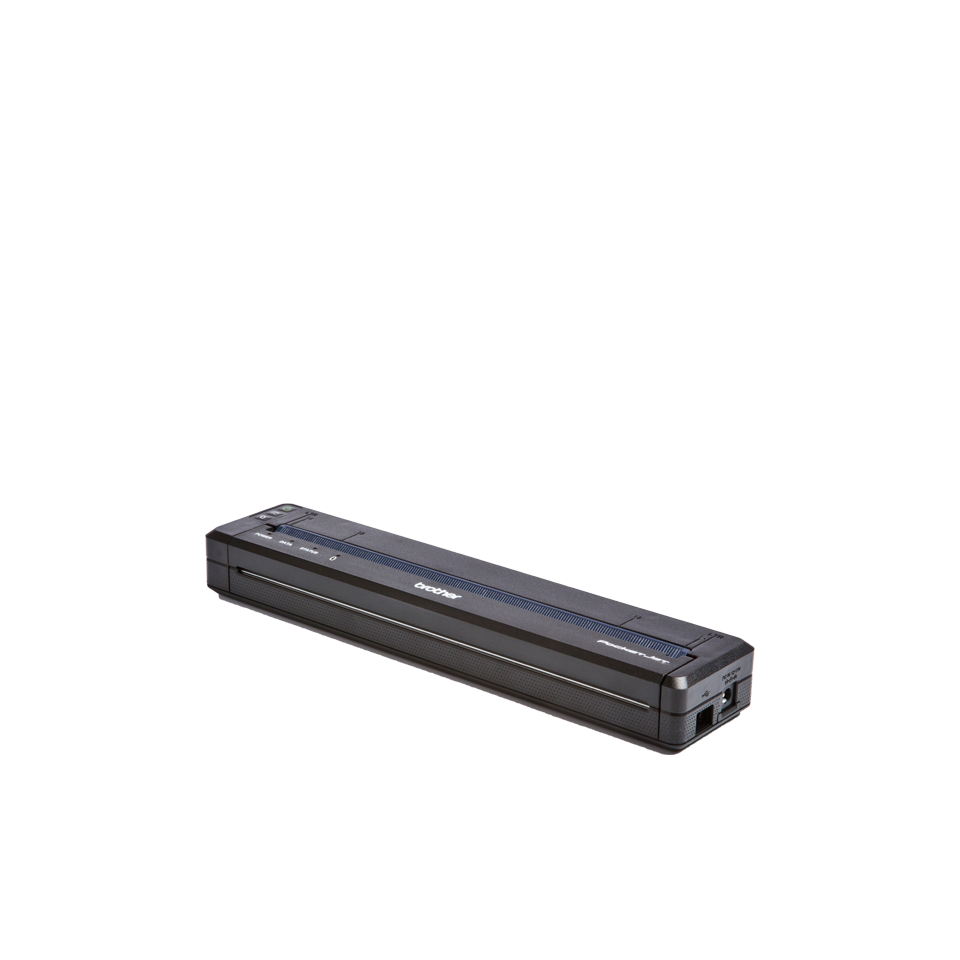

PJ-763MFi

A4 mobile printer with Bluetooth connectivity for iPad/iPhone

Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.

The PJ-763MFi with built-in Bluetooth and USB connectivity offers a mobile A4 print solution compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.

This model offers an easy method to connect to Apple iOS devices, thanks to the MFi Bluetooth protocol.

High-resolution thermal print technology at 300dpi produces crisp text at a print speed of up to 8 pages per minute.

Compatible with a wide range of mobile and desktop operating systems, the PJ-763MFi can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available.

Key Features

  • Designed for Bluetooth printing from Apple iPad and iPhone
  • High-resolution 300dpi thermal print technology
  • Up to 8ppm print speed
  • iOS, Android, Windows, Mac, Linux and Citrix support
  • Optional high-capacity Li-ion battery for printing away from power sources
  • Customise your print solution with vehicle mounting kit, chargers and protective cases

Overview



Specification Details

Features and Specifications

Printer Type Mono
Barcode symbologies Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet. 2D:PDF417/MicroPDF417, DataMatrix, Maxicode, QR Code/Micro QR Code, Aztec
Max paper size A4
Memory RAM: 32MB, Flash: 6MB
Bluetooth Ver 2.1 EDR
Bluetooth profiles iAP(MFi), SPP, BIP, OPP and HRCP
USB interface Ver.2.0 (Full Speed). Peripheral plug type: Mini-B
Supported iOS SDK (iOS 5 or later), Android SDK (Android ver 2.3 or later using Bluetooth, ver 3.1 or later using USB connection)
Dimensions 255(W) x 55(D) x 30(H) mm
Wight 480 g
Contents PJ-763MFi mobile printer, USB Cable, Printhead Cleaning Sheet, Documentation
Weights Min: 105mm x 25.4mm, Max: 216mm x 5.49metres
Supported Windows - Vista/7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2, Mac OSX - v10.8/10.9/10.10, Linux - Redhat, Debian
A4 standard print speed 8
Resolution 300x300dpi
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold
Emulations ESC/P-P, ESC/P_B, Raster_P, P-touch Template
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Supported iPrint & Scan: (Android, iOS [MFi]), P-touch Editor, P-touch Transfer Manager, Citrix Xen App/Xen Desktop/Citrix Ready Certification (Windows only)
Warranty 1 year return to base
